THERMO MIX– LCD Digital

• ABDOS Thermo Mix Series allows for precise and efficient shaking and mixing as well as excellent temperature accuracy
and uniformity, offering a wide range of applications, such as Gene Synthesis, Gene Purification, Gene Denaturation,
Protein Denaturation, Enzymatic reaction, Bacterial growth and many more.
• ABDOS Thermo Mix is equipped with quick interchange of blocks with magnet Adhesion technology and without any tools.
• It is programmable and has three points calibration with precise temperature control for heating and cooling.

Thermo Mix – LCD Digital
Code	Product	No. / Case
E11340	LCD Digital Thermo Mix with Heating and Cooling and Mixing with 1.5 ml Heating Block	1
E11341	LCD Digital Thermo Mix with Heating and Cooling with 1.5 ml Heating Block	1
E11342	LCD Digital Thermo Mix with Heating and Mixing with 1.5 ml Heating Block	1

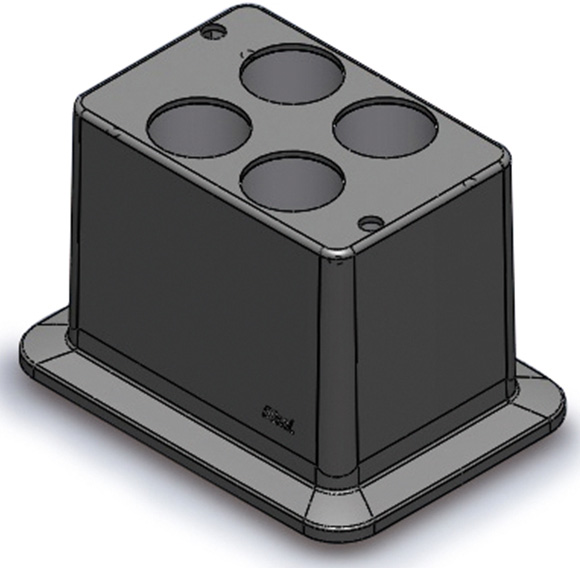

Spare Accessories
Code	Product	Speed	Places	No. / Case
E11343	Heating Block, used for 0.2 ml / 96 well PCR plate	1500rpm	96	1
E11344	Heating Block, used for 96/384 well microplate	1500rpm	96/384	1
E11345	Heating Block, used for 0.5 ml	1500rpm	24	1
E11346	Heating Block, used for 1.5 ml	1500rpm	24	1
E11347	Heating Block, used for 2.0 ml	1500rpm	24	1
E11348	Heating Block, used for 5 ml (Round Bottom)	1500rpm	8	1
E11358	Heating Block, used for 5ml (Conical Bottom)	1400rpm	8	1
E11349	Heating Block, used for 15 ml	800rpm	8	1
E11350	Heating Block, used for 50 ml	600rpm	Product	1

Descriptions

• ABDOS Thermo Mix Series allows for precise and efficient shaking and mixing as well as excellent temperature accuracy
and uniformity, offering a wide range of applications, such as Gene Synthesis, Gene Purification, Gene Denaturation,
Protein Denaturation, Enzymatic reaction, Bacterial growth and many more.
• ABDOS Thermo Mix is equipped with quick interchange of blocks with magnet Adhesion technology and without any
tools.
• It is programmable and has three points calibration with precise temperature control for heating and cooling.

Product spec

CE certified

Yes

SPECIFICATIONS :

Code	E11340	E11341	E11342
Voltage	220-240 V	220-240 V	220-240 V
Frequency	50-60 HZ	50-60 HZ	50-60 HZ
Functions	Heating, cooling & Mixing	Heating & Cooling	Heating & Mixing
Adaptor Block Material	Aluminium	Aluminium	Aluminium
Temperature Range	Heating : 25°C-100°C Cooling : 25°C – below	Heating : 25°C-110°C Cooling : 25°C – below	Heating : 25°C-100°C
Setting Temperature Range	15°C	25°C	15~100°C
Temperature Uniformity @ 20-45°C	0.1~100°C	-5~100°C	±0.5°C
Temperature control accuracy@	±0.5°C	±0.5°C	±0.5°C
20-45°C	±0.5°C	±0.5°C	5.5°C/min
Maximum Heating Rate	5.5°C/min	5.5°C/min	–
Maximum Cooling Rate	5.5°C/min(100°C-25°C) 0.5°C/min(below 25°C)	5.5°C/min(100°C-25°C) 0.5°C/min(below 25°C)	–
Mixing Frequency	200-1500 rpm	NA	200-1500 rpm
Mixing Orbit	3 mm	NA	3 mm
Program	9	9	9
Overheating Protection	150°C	150°C	150°C
Dimension(WXDXH)	200 x 235 x 120mm	200 x 235 x 120mm	200 x 235 x 120mm
Weight	7.3 kg	7.3 kg	7.3 kg
