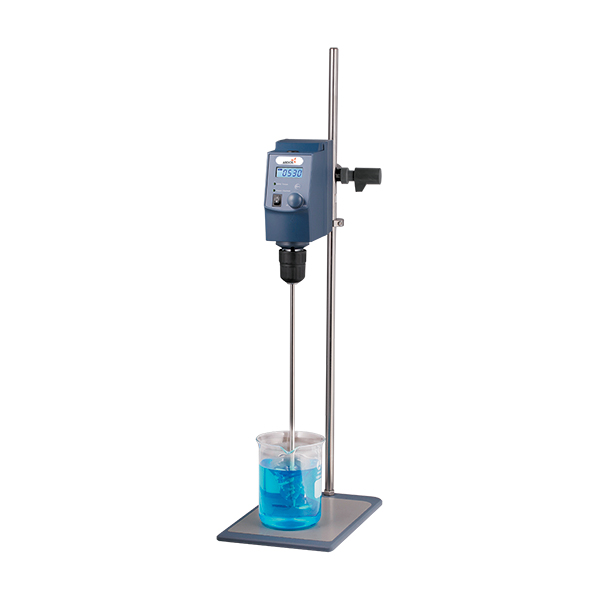

Swirlex – LCD Digital Overhead Stirrer

• Swirlex overhead stirrer is widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis,
petrochemical industry and more.
• Reliability, long continuous service and outstanding performance are its hallmarks.
• Digital LCD display for precise monitoring of set and actual speed.
• LCD Torque displays real time information on viscosity changes.

Swirlex – Digital Overhead Stirrer
Code Product No. / Case No. / Case
E11310 LED Digital Overhead Stirrer with Universal Plate Stand including support (holder) and fixing device and (E11312) Stainless Steel crossed Stirrer(E11313) 20L 1
E11311 LED Digital Overhead Stirrer with Universal Plate Stand including support (holder) and fixing device and (E11312) Stainless Steel crossed Stirrer(E11313) 40L 1
E11321 LCD Digital Overhead Stirrer with Timer with Universal Plate Stand including support (holder) and fixing device and (E11312) Stainless Steel grand crossed Stirrer(E11324) 70L 1
E11322 LCD Digital Overhead Stirrer with Timer with Grand Plate Stand including support (holder) and fixing device and (E11323) Stainless Steel grand crossed Stirrer(E11324) 70L 1



Spare Accessories for E11310, E11311, E11321 & E11322
Code Product Dimensions No. / Case
E11312 Universal Plate Stand including support (holder) & fixing device 20 x 31 cm (L x W) 1
E11313 Stainless Steel Crossed Stirrer 40 x 5 cm (L x Ɍ) 1
E11314 Stainless Steel Straight Stirrer 40 x 6 cm (L x Ɍ) 1
E11315 Stainless Steel Blade Stirrer 40 x 6.8 cm (L x Ɍ) 1
E11316 Stainless Steel Centrifugal Stirrer 40 x 9 cm (L x Ɍ) 1
E11317 PTFE Crossed Stirrer 35 x 6.5 cm (L x Ɍ) 1
E11318 PTFE Straight Stirrer 35 x 7 cm (L x Ɍ) 1
E11319 PTFE Blade Stirrer 35 x 6.8 cm (L x Ɍ) 1
E11320 PTFE Centrifugal Stirrer 35 x 8.5 cm (L x Ɍ) 1
Spare Accessories for E11321 & E11322
Code Product Dimensions No. / Case
E11323 Universal Grand Plate Stand including support (holder) & fixing device 33.5 x 46.3 cm (L x W) 1
E11324 Stainless Steel Grand Crossed Stirrer 60 x 10 cm (L x Ɍ) 1
E11325 Stainless Steel Grand blade Stirrer 60 x 10 cm (L x Ɍ) 1
E11326 Stainless Steel grand anchor Stirrer 60 x 10 cm (L x Ɍ) 1
E11327 Stainless Steel grand Centrifugal Stirrer 60 x 10 cm (L x Ɍ) 1

Descriptions

• Swirlex overhead stirrer is widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis,
petrochemical industry and more.
• Reliability, long continuous service and outstanding performance are its hallmarks.
• Digital LCD display for precise monitoring of set and actual speed.
• LCD Torque displays real time information on viscosity changes.
• Protection and safety circuits ensure automatic cut-off in an anti-stall or overload conditions.
• Provides a constant speed even with changes in viscosities of sample.
• RS232 interface PC can control and document all operation values.

Product spec

CE certified Yes

SPECIFICATIONS :

Code E11310 E11311 E11321 & E11322
Voltage 220-240 V 220-240V 220-240V
Frequency 50-60Hz 50-60Hz 50-60Hz
Power 70W 130W 200W
Speed Range 50 – 2200rpm 50 – 2200rpm 50 – 1100rpm
Speed Display LED LED LCD
Max. Stirring Quantity 20L 40L 70L
Max Torque 40Ncm 60Ncm 300Ncm
Max Viscosity 10000mPas 50000mPas 100000mPas
Chuck range diameter 0.5 – 10mm 0.5 – 10mm 0.5 – 10mm
Overload Protection Display LED Lights, Motor Automatically
Stops
LED Lights, Motor Automatically
Stops
LED Lights, Motor Automatically
Stops
Dimensions 83 x 220 x 186 mm 83 x 220 x 186 mm 83 x 220 x 186 mm
Weight 2.8 kg 2.8 kg 3.2 kg
Data Interface RS232 No No Yes
Permissible ambient Temperature 5-40°C 5-40°C 5-40°C
Permissible ambient Humidity 80% 80% 80%
Protection class according to DIN/ EN 60529 IP21 IP21 IP21
