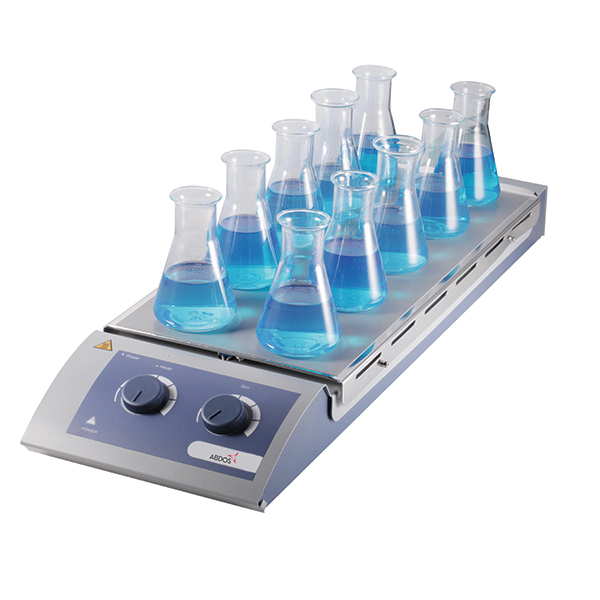

Swirltop – Multi Position Magnetic Stirrer & Hot Plate

Email to a friend

SWIRLTOP Unit features an extremely durable stainless steel plate with anti-slip and anti-corrosion silicon surface.
SWIRLTOP advanced Microprocessor based electronic speed control motor provides constant speed.
High performance multi-position magnetic stirrer with uniform temperature distribution.

Categories:Equipments

Code	Product	Workplate Size	No. / Case
E11235	10 Channel Magnetic Stirrer	18 x 45 cm	1
E11236	10 Channel Magnetic Stirrer & Hot Plate	18 x 45 cm	1

Descriptions

SWIRLTOP Unit features an extremely durable stainless steel plate with anti-slip and anti-corrosion silicon surface.
SWIRLTOP advanced Microprocessor based electronic speed control motor provides constant speed.
High performance multi-position magnetic stirrer with uniform temperature distribution.
Micro-processor based stirring controls to provide consistency with various samples.
Brushless DC Motor for maintenance free & quiet operations.

Product spec

CE certified

Yes

SPECIFICATIONS :

Code	E11235	E11236
Voltage	220-240V	220-240V
Frequency	50-60 Hz	50-60 Hz
Dimension of work plate	180 x 450 mm	180 x 450 mm
Speed display	Scale	Scale
Shaking Movement	Orbital	Orbital
Temperature range	NA	Room Temperature – 120°C
Motor Type	DC Motor	DC Motor
Stirring Speed	0 – 1100 rpm	0 – 1100 rpm
Stirring Position	10	10
Maximum Stirring capacity	0.4 L(Each stirring position)	0.4 L(Each stirring position)
Max. Stirring Bar	40 mm	40 mm
Plate Material	Stainless Steel with silicon Film	Stainless Steel with silicon Film
Dimension	622 x 205 x 65mm	622x 182 x 65mm
Weight	3.2 kg	3.2kg
Permissible ambient temperature & Humidity	5 – 40°C	5 – 40°C
Permissible relative humidity	80%	80%
Protection class	IP42	IP42

Data Sheets

swirltop-multi-channel-magnetic-stirrer-hot-plate
