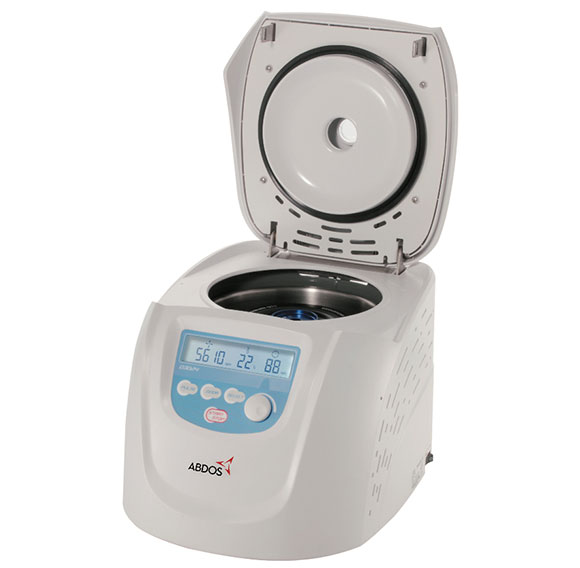

Swirl Pro High Speed Micro Centrifuge

Code	Product	No./case
E11520	Swirl Pro High Speed Micro Centrifuge	1
Spare Accessories:
Code	Product	No./case
E11521	24 Place Rotor for 0.2, 0.5, 1.5 & 2.0 ml	1
E11522	18 Place Rotor for 5.0 ml	1
E11528	12 Place Rotor for 5.0 ml(Eppendorf Tube)	1
E11523	36 Place Rotor for 0.2 & 0.5 ml	1
E11524	32 (8 x 4) Place Rotor for 0.2 ml PCR	1
E11525	Rotor Adapter for 2.0 ml – 0.2 ml used with E11521	24
E11526	Rotor Adapter for 2.0 ml – 0.5 ml used with E11521	24
E11527	Rotor Adapter for 0.5 ml – 0.2 ml used with E11523	36

Descriptions

• Swirl Pro is a micro centrifuge used for sedimentation of cells and virus, separation of sub-cellular organelles and
isolation of macromolecules such as DNA, RNA, proteins or lipids.
• Swirl Pro is used in physical and chemical analysis, biochemistry, cellular biology, clinical labs, blood donation centre
and high-end research.
• Swirl Pro has a large ergonomic design with easy to read display and sound alert.
• Automatic lid opening when run is complete prevents sample warming and allow easy access of samples.
• Both RPM and G-force can be displayed.
• Swirl Pro is stable and silent during operation. It also delivers fast acceleration and deceleration.
• Swirl Pro conforms to international safety standards and regulations. It has also passed the explosion proof test and
CE, TUV and FCC marked.
• Special multi-flow air-cooling design helps to keep lower rotor temperature.
• Bio-safe rotor and anti-sample overflow prevents sample does not leak in centrifugal process causing microbial
contamination.
• Robust aluminum alloy rotor can be fully autoclaved.
• Swirl Pro adapts a Brushless DC Motor.

Product spec

CE certified

Yes

SPECIFICATIONS:

Voltage	220-240 V
Frequency	50-60 Hz
Current	3 A
Max Speed	15000 rpm (200-15000rpm) with increment of
Max. RCF [xg]	10 rpm
Speed Accuracy	21380 x g with increment of 10 xg ±20 rpm
Rotor Capacity	5 mL x 18 places. 0.2mL/0.5mL/ 1.5 ml/2mL x 24 places. 0.5mL x 36 places PCR 8 x 4 places
Run Time	30sec-99min-HOLD (Continuous operation)
Driving Motor	Brushless DC motor Dual door interlock
Safety Devices	Over-speed detection Over temperature detection Automatic internal diagnosis
Noise Level	≤54 Db
Additional Features	Speed/RCF switch Short-time run function
Acceleration /Braking time Dimensions [mm]	Sound-alert function 25 sec for both Acceleration and Breaking 280 x 364 x 266
Weight	12 kg
Permissible ambient temperature & Humidity	+4-45° C, 80%
