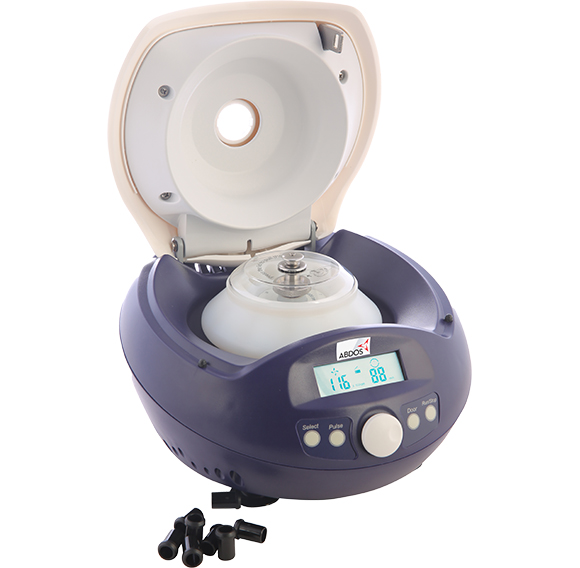

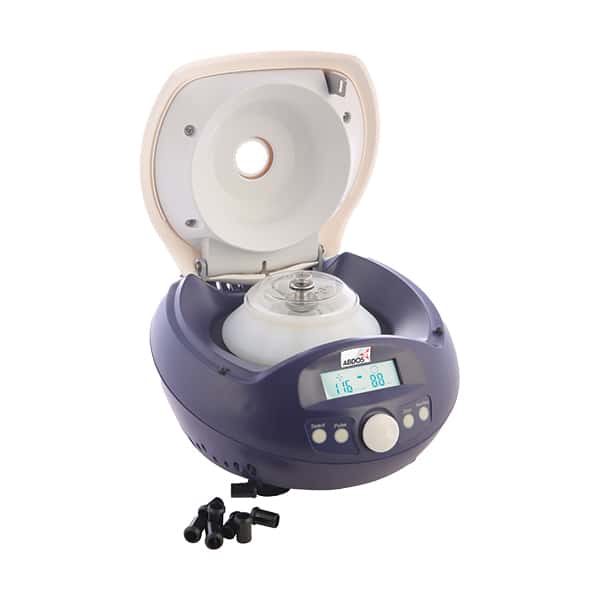

Swirl Maxi Micro Centrifuge

Code	Product	No./case
E11510	Swirl Maxi Micro Centrifuge with 12 Place Rotor for 0.2, 0.5, 1.5 & 2.0 ml	1
Spare Accessories:
Code	Product	No./case
E11511	12 Place Rotor for 0.2, 0.5, 1.5 & 2.0 ml	1
E11512	Rotor Adapter for 0.2 ml – 2.0 ml used with E11511	24
E11513	Rotor Adapter for 0.5 ml – 2.0 ml used with E11511	24

Descriptions

• Swirl Maxi is a personal micro centrifuge used for sedimentation of cells and virus, separation of sub-cellular organelles and
isolation of macromolecules such as DNA, RNA, proteins or lipids.
• Swirl Maxi is used in physical and chemical analysis, biochemistry, cellular biology, clinical labs, blood donation centre and
high-end research.
• Swirl Maxi has a large ergonomic design with easy to read display and sound.
• Both RPM and G-force can be displayed.
• Swirl Maxi is stable and silent during operation. It also delivers fast acceleration and deceleration.
• Swirl Maxi conforms to international safety standards and regulations. It has also passed the explosion proof test from CE,
TUV and FCC.
• Swirl Maxi adapts a Brushless DC Motor.
• Automatic lid-lock release prevents sample warming and allows easy access to samples.
• The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated
and held at the target speed.
• High strength aluminium alloy rotors are fully autoclavable, and can withstand stream sterilizing at 121°C for 20 minutes.

Product spec

CE certified

Yes

SPECIFICATIONS:

Voltage	220-240 V
Frequency	50-60 Hz
Current	3 A
Max Speed	15000 rpm (500-15000 rpm) with increment of 100 rpm
Max. RCF [xg]	15100 xg with increment of 100 xg
Speed Accuracy	±20 rpm
Rotor Capacity	0.2mL, 0.5mL, 1.5 mL & 2mL x 12 places.
Run Time	30sec-99min-HOLD (Continuous operation)
Driving Motor	Brushless DC motor
Safety Devices	Dual door interlock Over-speed detection Over temperature detection Automatic internal diagnosis
Noise Level	≤54 Db
Additional Features	Speed/RCF switch Short-time run function Sound-alert function
Acceleration /Braking time	11 sec for Acceleration & 9 sec for Breaking
Dimensions [mm]	255 x 245 x 140 mm
Weight	6 kg
Permissible Ambient Temperature	4°C to 40°C
Permissible Relative Humidity	80%
