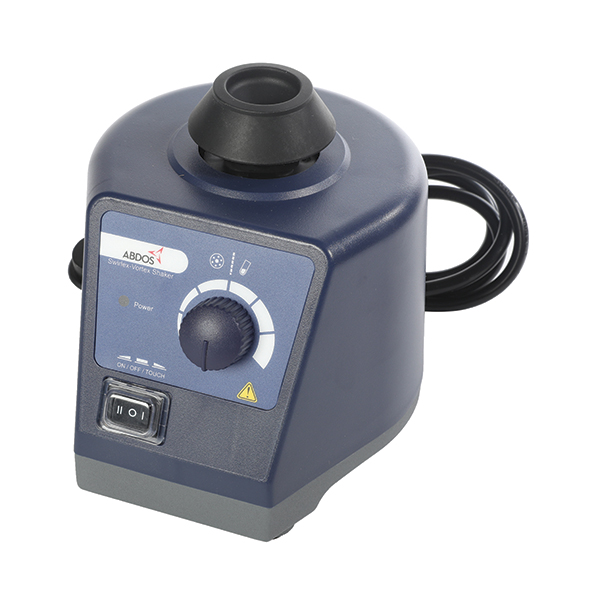

Swirlex – Vortex Shaker

• Swirlex-Vortex is suitable for touch or continuous or fixed operation.
• Used for gentle mixing to vigorous re-suspension of biological cells and canonical liquid components in tubes using
eccentric mechanism.
• These vortex shakers contain specially designed silicone feet and steel base excellent for damping vibration.
• Swirlex vortex Shaker is eccentric with oil less ball bearing.

SWIRLEX – Vortex Shaker
Code	Product	Workplate Size	No. / Case
E11190	Swirlex Adjustable Vortex Shaker	4 mm	1

Spare Accessories
Code	Product	No. / Case
E11191	Tube holding Rod	1
E11192	Universal 100mm top plate with 4 vaccum suction feet	1
E11198	Platform pad for tubes and vessels Ƈ 99 mm	1
E11197	Tube Adapter for 48 holes test tube Ƈ 6mm	1
E11193	Tube Adapter for 15 holes test tube Ƈ 10mm	1
E11194	Tube Adapter for 16 holes test tube Ƈ 12mm	1
E11195	Tube Adapter for 8 holes test tube Ƈ 16mm	1
E11196	Tube Adapter for 8 holes test tube Ƈ 20mm	1

Kindly Note: E11192 is required to run E11198, E11197, E11193, E11194, E11195, E11196 & E11196 Adapter.

Descriptions

Product spec

CE certified

Yes

SPECIFICATIONS :

Voltage	220-240V
Frequency	50-60Hz
Speed Range	0 – 2500 rpm
Shaking Movement	Orbital
Motor Type	Shaded Pole Motor
Outer Diameter	4mm
Speed Display	Analog Type
Run Type	Continuous/Touch operation
Dimensions	127x130x160 mm
Weight	3.5 kg
Power	60W
Permissible ambient temperature	5-40°C
Permissible relative humidity	80%
Protection Class	IP21
