Vacuum Guage Round / Cubic Desiccator

• These vacuum desiccators feature a round design with light weight yet high tensile strength.
• Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for 72 hours.
• High quality silicone gasket ensures greaseless airtight seal for cost effective and clean test environment.
• Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.

Code Capacity D x H Colour No./case
E11617 6 LTS 242 x 354 mm Natural 1
E11617 A 6 LTS 243 x 354 mm Amber 1
E11618 10 LTS 308 x 400 mm Natural 1
E11618 A 10 LTS 308 x 400 mm Amber 1
E11619 20 LTS 385 x 475 mm Natural 1
E11619 A 20 LTS 385 x 475 mm Amber 1



Code Capacity W x D x H Colour No./case
E11613 11 LTS 322 x 285 x 271 mm Natural 1
E11613 A 11 LTS 323 x 285 x 271 mm Amber 1
E11614 23 LTS 420 x 397 x 281 mm Natural 1
E11614 A 23 LTS 421 x 397 x 281 mm Amber 1
E11615 35 LTS 420 x 397 x 381 mm Natural 1
E11615 A 35 LTS 421 x 397 x 381 mm Amber 1
E11616 45 LTS 420 x 397 x 491 mm Natural 1
E11616 A 45 LTS 421 x 397 x 491 mm Amber 1

Descriptions

• These vacuum desiccators feature a round design with light weight yet high tensile strength.
• Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for 72 hours.
• High quality silicone gasket ensures greaseless airtight seal for cost effective and clean test environment.
• Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
• Three-way stopcock ensures consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting
on each side secures attachment of tubing.
• Flange lock holds the top and the bottom together during non-vacuum conditions.
• UV-blocking model minimizes damage and discoloration of light-sensitive samples.

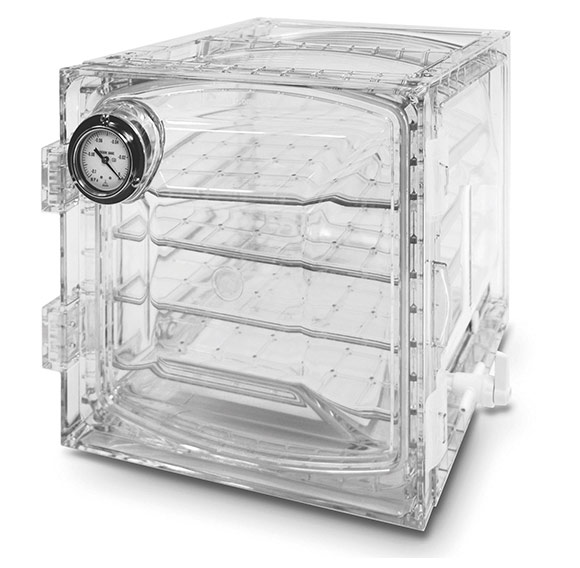

• In Vacuum Gauge Round Desiccator, vacuum gauge is attached at the centre of the lid while it is attached at the front
door in Vacuum Gauge Cubic Desiccator.

Product spec

SPECIFICATIONS :

Code E11617 & E11617 A E11618 & E11618 A E11619 & E11619 A E11613 & E11613 A E11614 & E11614 A E11615 & E11615 A E11616 & E11616 A
Internal Volume 6 L / 0.2 cu ft 10 L / 0.4 cu ft 20 L / 0.7 cu ft 11 L / 0.4 cu ft 23 L / 0.8 cu ft 35 L / 1.2 cu ft 45 L / 1.6 cu ft
Guage Range 0 to -0.1 Mpa 0 to -0.1 Mpa 0 to -0.1 Mpa 0 to -0.1 Mpa 0 to – 0.1 Mpa 0 to – 0.1 Mpa 0 to -0.1 Mpa
Nozzle Diameter 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch 9.5 mm / 0.37 inch
Max. Permissible Vacuum 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa 1.33 x 10-4 Mpa
Max Load per shelf 3 Kg 5 Kg 5 kg 5 kg
Number of Shelves 2 standard / 4 maximum 2 standard / 4 maximum 3 standard / 5 maximum 3 standard / 6 maximum
Material – Body Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
Material – Perforated Sample Tray Polypropylene Polypropylene Polypropylene Polycarbonate Polycarbonate Polycarbonate Polycarbonate
Material – Drying Agent Tray / Locker Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
Material – Vacuum Seal Silicone Rubber Silicone Rubber Silicone Rubber Silicone Rubber Silicone Rubber Silicone Rubber Silicone Rubber
Dimension – Interior(W x D x H) 248 x 254 x 238 mm 346 x 365 x 246 mm 355 x 375 x 345 mm 355 x 374 x 445 mm
Dimension – Exterior (Dia X H) 242 x 354 mm 308 x 400 mm 385 x 475 mm
Dimension – Exterior(W x D x H) 322 x 285 x 271 mm 420 x 397 x 281 mm 420 x 397 x 381 mm 420 x 397 x 491 mm
Net Weight 1.5 Kg 2.5 Kg 4.2 Kg 4.2 Kg 8.2 Kg 10.8 Kg 12.2 Kg
