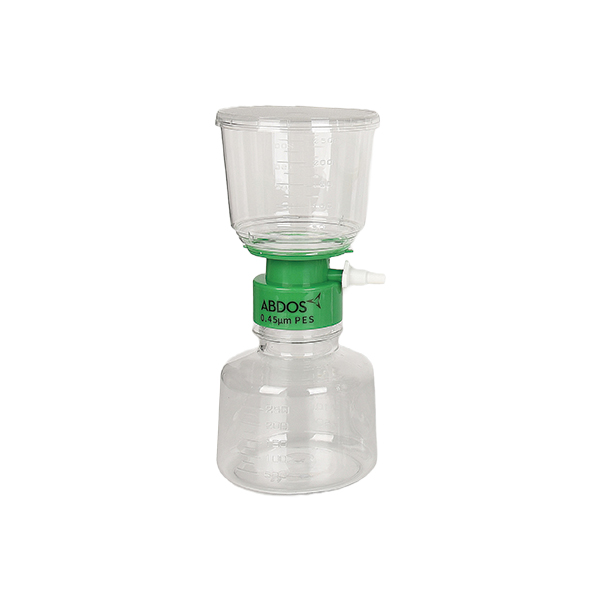

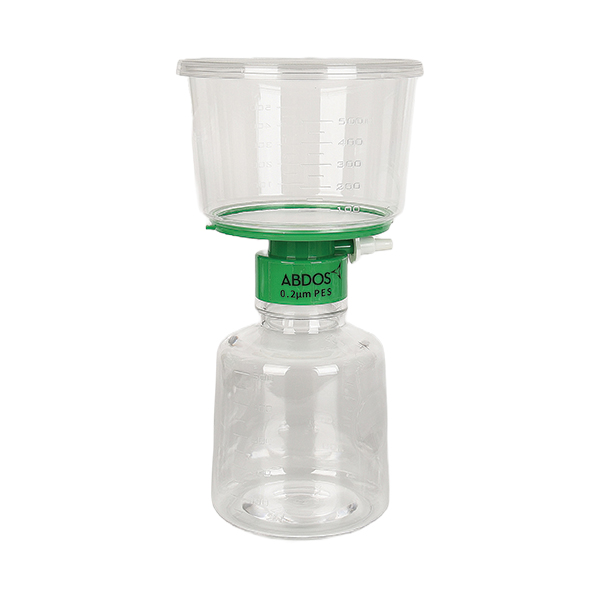

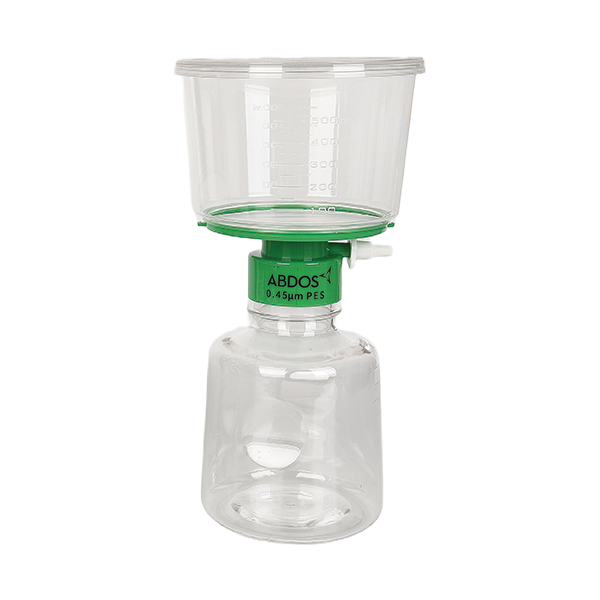

BIOFILL Bottle Top Filtration System

• BIOFILL Bottle Top Filtration System is available as a Full Assembly or as a bottle top Funnel. ABDOS BIOFILL Bottle Top Filtration Systems are disposable, sterile, vacuum operated systems for the sterile preparation of buffers, tissue culture media, microbiological media, and other biological fluids. Systems are available with asymmetric 0.1 µm, 0.22 µm & 0.45µm PES membranes. ABDOS PES membrane has low protein binding and is surfactant-free.
• BIOFILL Filtration system is designed for sterilization or clarification of aqueous laboratory fluids. The filters are gamma radiated & manufactured in clean room plant.
• The complete system is composed of a polystyrene filter funnel and receiver bottle, a SECURE grasp cap, and a vacuum
hose adapter. Systems are also available with 15 ml and 50 ml polypropylene centrifuge tubes.

BIOFILL Bottle Top Funnel

Code Product Description Funnel capacity
Volume
GL Size/Threads Filter Pore
Size
Membrane
Diameter
No./case
P21101 250ml Funnel Only with 0.2 um PES Membrane 250 ml 45 0.2 µm 66 mm 24
P21102 500ml Funnel Only with 0.2 um PES Membrane 500 ml 45 0.2 µm 66 mm 24
P21103 1000ml Funnel Only with 0.2 um PES Membrane 1000 ml 45 0.2 µm 90 mm 24
P21104 250ml Funnel Only with 0.1 um PES Membrane 250 ml 45 0.1 µm 90 mm 24
P21105 500ml Funnel Only with 0.1 um PES Membrane 500 ml 45 0.1 µm 66 mm 24
P21106 1000ml Funnel Only with 0.1 um PES Membrane 1000 ml 45 0.1 µm 90 mm 24
P21107 250ml Funnel Only with 0.45 um PES Membrane 250 ml 45 0.45µm 90 mm 24
P21108 1000ml Funnel Only with 0.45 um PES Membrane 1000 ml 45 0.45 µm 90 mm 24
P21109 1000ml Funnel Only with 0.45 um PES Membrane 1000 m 45 0.45 µm 90 mm 24

BIOFILL Bottle Top Filtration System

Code Product Description Funnel capacity
Volume
Receiver
Capacity Volume
Filter Pore
Size
Membrane
Diameter
No./case
P21090 250ml, 0.2µm High Flow PES Bottle Top Filter Full Assembly, Sterile 250 ml 250 ml 0.2 µm 66 mm 12
P21091 500ml, 0.2µm High Flow PES Bottle Top Filter Full Assembly, Sterile 500 ml 500 ml 0.2 µm 90 mm 12
P21092 1000mL, 0.2µm High Flow PES Bottle Top Filter Full Assembly, Sterile 1000 ml 1000 ml 0.2 µm 90 mm 12
P21093 250ml, 0.45µm High Flow PES Bottle Top Filter Full Assembly, Sterile 250 ml 250 ml 0.45 µm 66 mm 12
P21094 500ml, 0.45µm High Flow PES Bottle Top Filter Full Assembly, Sterile 500 ml 500 ml 0.45 µm 90 mm 12
P21095 1000ml, 0.45µm High Flow PES Bottle Top Filter Full Assembly, Sterile 1000 ml 1000 ml 0.1 µm 90 mm 12
P21096 250ml, 0.1µm High Flow PES Bottle Top Filter Full Assembly, Sterile 250 ml 250 ml 0.1 µm 66 mm 12
P21097 500ml, 0.1µm High Flow PES Bottle Top Filter Full Assembly, Sterile 500 ml 500 ml 0.1 µm 90 mm 12
P21098 1000ml, 0.1µm High Flow PES Bottle Top
Filter Full Assembly, Sterile
1000 m 1000 ml 0.1 µm 90 mm 12
P21099 50ml centrifuge Tube and Funnel , 0.2µm High Flow PES Membrane, Sterile 50 ml 50 ml 0.2 µm 40 mm 24
P21100 15ml centrifuge Tube and Funnel , 0.2µm High Flow PES Membrane, Sterile 50 ml 15 ml 0.2 µm 40 mm 24

Descriptions

• BIOFILL Bottle Top Filtration System is available as a Full Assembly or as a bottle top Funnel. ABDOS BIOFILL Bottle Top Filtration Systems are disposable, sterile, vacuum operated systems for the sterile preparation of buffers, tissue culture media, microbiological media, and other biological fluids. Systems are available with asymmetric 0.1 µm, 0.22 µm & 0.45µm PES membranes. ABDOS PES membrane has low protein binding and is surfactant-free.
• BIOFILL Filtration system is designed for sterilization or clarification of aqueous laboratory fluids. The filters are gamma
radiated & manufactured in clean room plant.
• The complete system is composed of a polystyrene filter funnel and receiver bottle, a SECURE grasp cap, and a vacuum hose adapter. Systems are also available with 15 ml and 50 ml polypropylene centrifuge tubes.
• Filtration funnels are compatible with the Quick Connect pedestal system, a cradle ring for use with existing lab stands, & vacuum hose adapters. Quick-Connect pedestal offers one-time vacuum connection and one-handed operation. Quick
Connect Pedestal are sold separately.

Product spec

Sterile (Gamma Irridiatation) Yes
Quality management system – Medical Devices Yes
