Swirlex – Digital Handheld Homogenizer

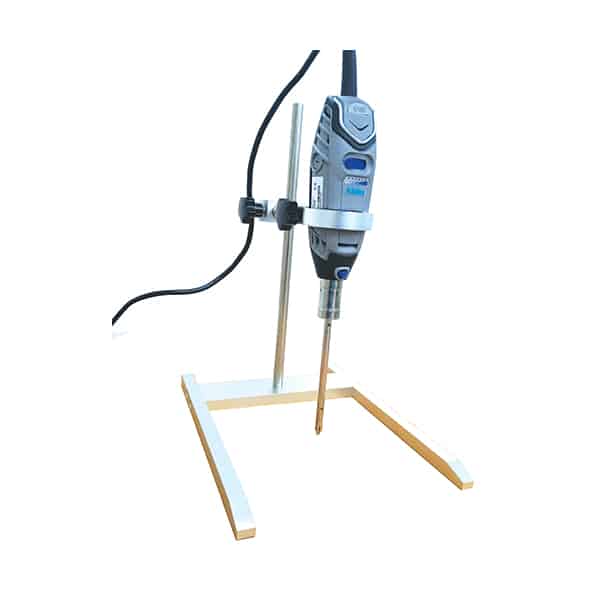

• ABDOS Swirlex-Digital Handheld Homogenizer is a powerful handheld homogenizer designed to rapidly homogenize, disperse and disintegrate biological samples in 10-30 seconds with adjustable speed ranging from 8,000 rpm up to 30,000 rpm.
• The homogenizer is ideal to use with samples from 0.5ml to 250ml with three types of generator probes available for different sample volume range.
• It is lightweight, can be held with one hand and also mounted to a stand for fatigue-free and longer operation. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is generally achieved in a few seconds.
• Autoclavable generator shaft is made up of 316L stainless steel Interchangeable generator probes that are easily disassembled for clean-up.

Categories:
Swirlex-Digital Hand Held Homogenizer
Code Product Volume Range No./case
E12410 Swirlex-Digital Hand Held Homogenizer with Dispersing shaft Suporting for volume 0.1-50 ml & Support Stand. 0.1-50 ml 1
E12420 Swirlex-Digital Hand Held Homogenizer with Dispersing shaft Suporting for volume 1-250 ml& Support Stand 1-250 ml 1



Spare Accessories
Code Product Volume Range No./case
E12411 Dispersing Shaft – Length-90mm, process volume- 0.1-50 ml 5 mm 1
E12412 Dispersing Shaft – Length-160mm, process volume- 0.3-50 ml 7 mm 1
E12413 Dispersing Shaft – Length-150mm, process volume-1-250 ml 10 mm
E12414 Dispersing Shaft Length-170mm;process volume-2-250 ml 14 mm
E12415 Support Stand

Descriptions

• ABDOS Swirlex-Digital Handheld Homogenizer is a powerful handheld homogenizer designed to rapidly homogenize, disperse and disintegrate biological samples in 10-30 seconds with adjustable speed ranging from 8,000 rpm up to 30,000 rpm.
• The homogenizer is ideal to use with samples from 0.5ml to 250ml with three types of generator probes available for different sample volume range.
• It is lightweight, can be held with one hand and also mounted to a stand for fatigue-free and longer operation. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is generally achieved in a few seconds.
• Autoclavable generator shaft is made up of 316L stainless steel Interchangeable generator probes that are easily disassembled for clean-up.
• Optional H-type stand with adjustable height and angle available for more convenient and lengthier operation.

Product spec

SPECIFICATIONS :
Voltage 220-240 V
Frequency 50-60 Hz
Motor Type Universal Motor AC Carbon Brush Motor
Speed range 8000–30000 rpm
Max. Circum Speed 6.3-14 m/sec
Speed Control Dial Knob 6 Stage
Working Volume (ml, H2O) 0.1-50 ml (5mm Dispersing Shaft-E12411)
1-250 ml (10mm Dispersing Shaft-E12413)
Maximum Viscosity 5,000 mPas
Material of Dispersing Shaft SS 316L Stainless steel, PTFE
Weight 0.6 kg
Dimension (L x W x H) 46 x 55 x 230 mm
Noise 72 dB
Permissible ambient Temperature &
Humidity		 5-40°C
Permissible relative humidity 80%
Protection Class IP20

Data Sheets


Swirlex – Digital Handheld Homogenizer
