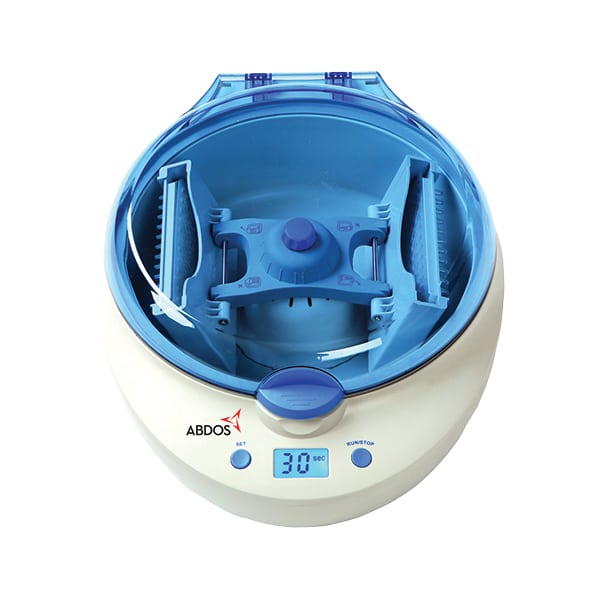

Swirl Mini Plate Centrifuge - Fast, Safe, and Space-Efficient
Balanced Centrifugation
Horizontal rotor technology ensures even liquid distribution and prevents residual droplets on plate walls.
Flexible Operation Modes
Offers instant short-spin or programmable timed runs to match different experiment needs.
Enhanced User Safety
Quick-stop braking and secure lid interlock provide controlled deceleration and operator protection.
Compact Build with Clear Visibility
Minimal footprint fits easily on any bench, while the transparent polycarbonate lid allows safe viewing.
Multi-Format Compatibility
Supports PCR plates (skirted/non-skirted), ELISA plates, and 8×0.2 ml strips without additional adapters.
Certified Performance
CE-approved design ensures quality and reliability for molecular, diagnostic, and analytical applications.
| Code | Product | No./Case |
|---|---|---|
| E11560 | Swirl Mini Plate Centrifuge, 2200 rpm | 1 |
| E11561 | Adaptor for PCR plates (skirted & non-skirted) | 2 |
| E11562 | Adaptor for 8×0.2 ml strips or 0.2 ml PCR tubes | 2 |
Description
The Swirl Mini Plate Centrifuge is designed for quick and easy spinning of PCR plates, ELISA plates, and PCR tubes. It uses a horizontal rotor design to ensure liquid collects evenly at the bottom of wells and tubes. The centrifuge features a short-spin function and a built-in timer (up to 10 minutes) to make routine work faster and more convenient. It reaches a maximum speed of 2200 rpm (480 ×g) and stops in less than 30 seconds, helping reduce handling time between steps. Its compact design saves bench space and includes a transparent polycarbonate lid for safe operation and easy viewing. The centrifuge can hold skirted and non-skirted PCR plates, ELISA plates, 8 × 0.2 mL PCR strip tubes, and individual 0.2 mL PCR tubes, making it suitable for multiple applications. With simple controls, quick braking, and support for common plate and tube formats, the Swirl Mini Plate Centrifuge is ideal for routine PCR and ELISA preparation in laboratories.
Specification
| Certification | CE Certified |
|---|---|
| Voltage | 220–230 V |
| Frequency | 50–60 Hz |
| Maximum Speed | 2200 rpm / 480 × g |
| Rotor Capacity | 2 × 2 PCR Plates / 2 × Microtiter Plates / 24 × 0.2 ml PCR Strips / 96 × 0.2 ml Tubes |
| Timer Range | Up to 10 minutes |
| Braking Time | Less than 30 seconds |
| Design | Horizontal rotor, streamlined body, transparent PC lid |
| Dimensions (L × W × H) | 290 × 360 × 140 mm |
| Weight | 3.6 kg |
| Safety Features | Lid interlock, automatic braking |
| Operation Type | Short-spin and timed modes |
