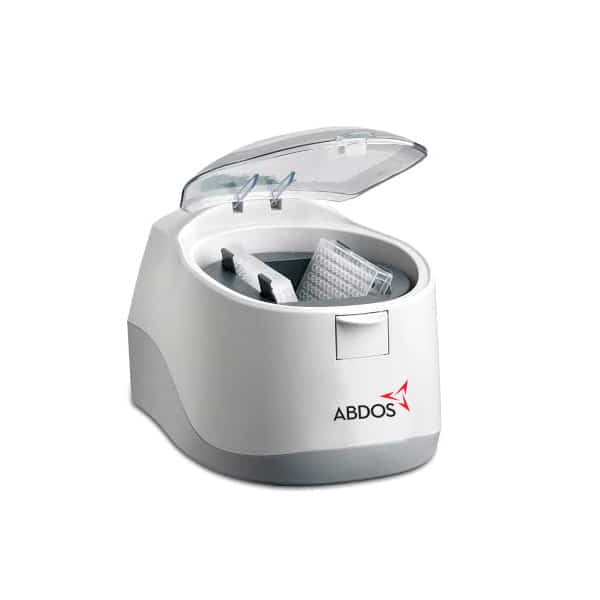

Swirl Micro Plate Centrifuge

• Less than half the size of conventional centrifuge (9 x 10 inches).
• The easily reachable rotor chamber includes two plate carriers that rest at a 75° angle, thus allowing plates to be
inserted confidently without seal in tapes or caps.
• Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force swings the plates into a horizontal
position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
• With a G-force of 600 xg, most samples can be spun.

Code Product No./case
E11550 Swirl Micro Plate Centrifuge 1
Spare Accessories:
Code Product No./case
E11551 Adapter, 96 x 0.2 ml or 8 and 12 x PCR strips 2
E11552 Rotor with carriers for deepwell plates upto 35mm tall
(max speed 1500 rpm)
1

Descriptions

• Less than half the size of conventional centrifuge (9 x 10 inches).
• The easily reachable rotor chamber includes two plate carriers that rest at a 75° angle, thus allowing plates to be inserted confidently without seal in tapes or caps.
• Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force swings the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
• With a G-force of 600 xg, most samples can be spun.
• Just open the lid and the automatic electric brake brings the rotor to a quick & smooth stop in just 4.0 seconds.

Product spec

CE certified Yes

SPECIFICATIONS:

Voltage
Frequency
220-230 V
50-60 Hz
Frequency 50-60 Hz
Max Speed 2550 rpm/600 xg
Rotor Capacity 2 x 2 PCR Plates
2 x Microtiter plates
24 x 0.2 mL PCR Strips
Deceleration 4 seconds
Dimensions 230 x 260 x 197 mm
Weight 4.0 kg
Permissible Ambient Temperature 4 to +40°C
Permissible Relative Humidity 80%
