SWIRLTOP 380°C – High-Temperature Precision Stirring & Heating
High-Temperature Performance
Designed to reach temperatures up to 380°C, the SWIRLTOP 380°C supports demanding laboratory applications without compromising accuracy.
Orbital Stirring & Precise Speed Control
Orbital movement ensures uniform mixing, while digital controls provide fine adjustment of stirring speed up to 1500 rpm.
Chemical-Resistant Construction
White ceramic-coated aluminum workplate withstands exposure to acids, bases, and other laboratory reagents, simplifying maintenance.
User-Friendly Interface
High-resolution LCD displays actual temperature and speed for precise monitoring. A hot warning icon ensures safe operation.
Durability & Safety
Brushless DC motor minimizes maintenance, and the unit complies with leading safety standards for reliable and secure laboratory use.
| Code | Product | Workplate Size | No./Case |
|---|---|---|---|
|
E11224
|

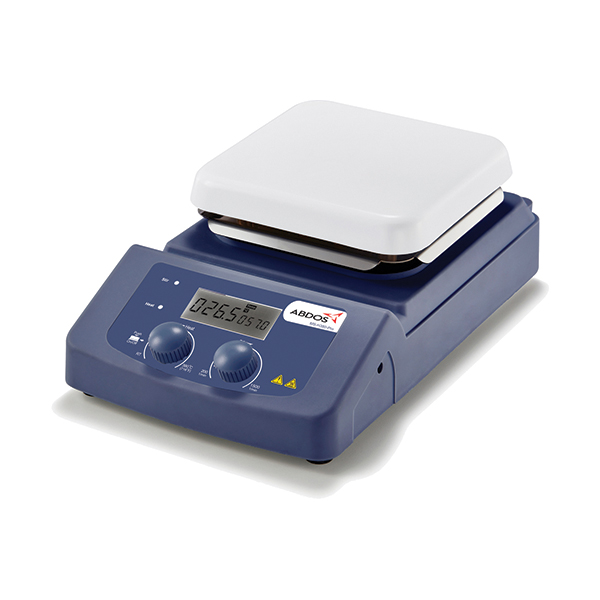

380°C Digital Magnetic Stirrer & Hot Plate with Support Rod (E11232) and External Temperature Probe (E11233)
|
14 x 14 cm
|
1
|
|
Spare Accessories
|
|||
|
E11232
|
SP – Support Rod
|
-
|
1
|
|
E11233
|
ETP – External Temperature Probe
|
-
|
1
|
Description
Swirl Top 380°C Digital Magnetic Stirrers & Hotplates meet top safety standards and feature a chemical-resistant white ceramic work plate, suitable for physical, chemical, analytical, and biological labs. They offer digital temperature control up to 380°C and speed control up to 1500 rpm, with a high-resolution LCD displaying real-time values. The brushless DC motor ensures maintenance-free operation, while the ceramic plate and aluminum cover provide excellent heat transfer and easy cleaning. A hot-warning indicator activates above 50°C, and the unit supports a maximum stirring capacity of 5L of water. External temperature control is also available via the PT1000 sensor.
Specification
| Feature | Details |
|---|---|
| Voltage | 220–240V |
| Frequency | 50–60Hz |
| Motor Type | DC Motor (Brushless) |
| Maximum Stirring Capacity | 3 L |
| Maximum Heating Capacity | Up to 380°C |
| Work Plate Diameter | 5 Inch (14 x 14 cm) |
| Work Plate Material | Aluminum with Ceramic Coating |
| Shaking Movement | Orbital |
| Speed Range | 200 – 1500 rpm |
| Temperature Range | Room Temperature – 380°C |
| Dimensions (W x D x H) | 150 x 260 x 100 mm |
| Weight | 1.8 kg |
| Ambient Temperature | 5 – 40°C |
| Relative Humidity | Up to 80% |
| Protection Class | IP42 |
| LCD Display | High-Resolution for Temperature & Speed |
| Safety Indicator | Hot warning above 50°C |
