Plain and Vacuum Desiccator, PP/CC

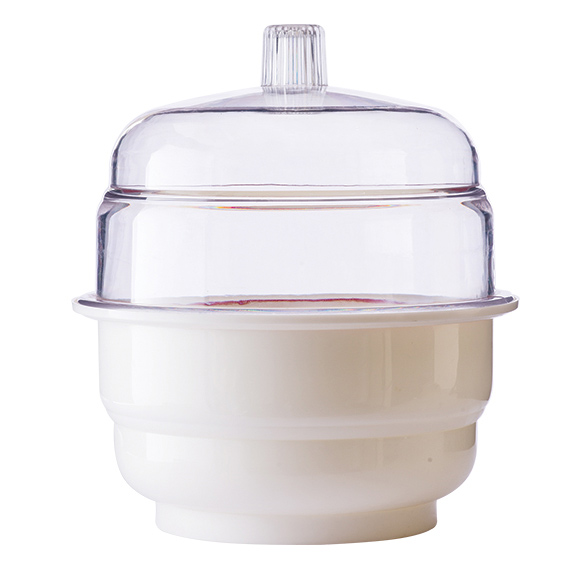

Plain Desiccator

• Desiccators are enclosures containing desiccants for preserving moisture sensitive products.
• These desiccators are moulded-in from high quality plastics which is light and easy to handle.
• Silicone O-ring assures tight seal down to 0°C without using grease.
• Bottom part of the desiccators comes with thick perforated polypropylene disc with big holes in the middle for easy lifting.

Code	Product	Plate Diameter	Inside Diamter	Flange Outer Diameter	Overall Height	No./case
E11601	Plain Desiccator	150 mm	145 mm	170 mm	210 mm	1
E11602	Plain Desiccator	200 mm	195 mm	230 mm	270 mm	1
E11603	Plain Desiccator	250 mm	240 mm	275 mm	330 mm	1
E11604	Plain Desiccator	300 mm	297 mm	338 mm	410 mm	1
E11605	Vacuum Desiccator	150 mm	145 mm	170 mm	210 mm	1
E11606	Vacuum Desiccator	200 mm	195 mm	230 mm	270 mm	1
E11607	Vacuum Desiccator	250 mm	240 mm	275 mm	330 mm	1
E11608	Vacuum Desiccator	300 mm	297 mm	338 mm	410 mm	1
E11609	All Clear Vacuum Desiccator	150 mm	145 mm	170 mm	210 mm	1
E11610	All Clear Vacuum Desiccator	200 mm	195 mm	230 mm	270 mm	1
E11611	All Clear Vacuum Desiccator	250 mm	240 mm	275 mm	330 mm	1
E11612	All Clear Vacuum Desiccator	300 mm	297 mm	338 mm	410 mm	1

Code	Capacity	W x D x H	Colour	No./case
E11613	11 LTS	322 x 285 x 271 mm	Natural	1
E11613 A	11 LTS	323 x 285 x 271 mm	Amber	1
E11614	23 LTS	420 x 397 x 281 mm	Natural	1
E11614 A	23 LTS	421 x 397 x 281 mm	Amber	1
E11615	35 LTS	420 x 397 x 381 mm	Natural	1
E11615 A	35 LTS	421 x 397 x 381 mm	Amber	1
E11616	45 LTS	420 x 397 x 491 mm	Natural	1
E11616 A	45 LTS	421 x 397 x 491 mm	Amber	1

Descriptions

Plain Desiccator

Vacuum Desiccator

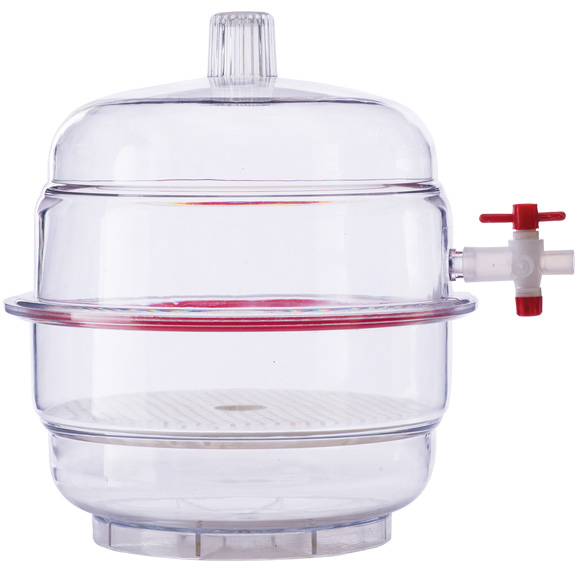

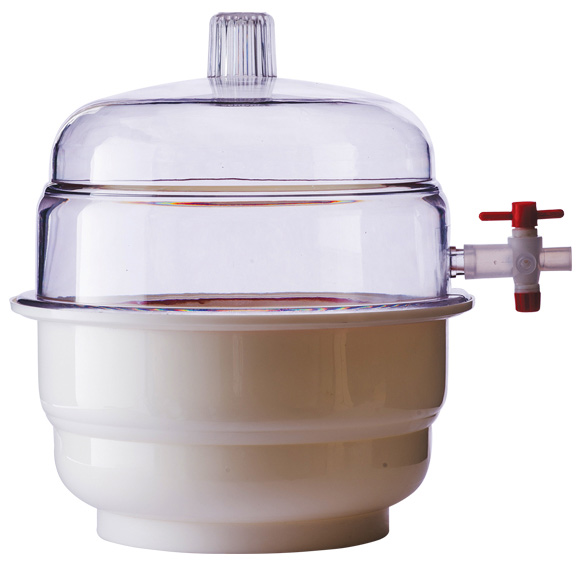

• Vacuum desiccator are moulded in high quality plastics which is light and easy to handle.
• Silicone O-ring assures tight seal down to 0°C without using grease.
• Polypropylene stopcock with PTFE.
• Bottom part of the desiccators comes with thick perforated polypropylene disc with big holes in the middle for easy lifting.
• Bottom part of the desiccators is transparent in all clear vacuum desiccator.
