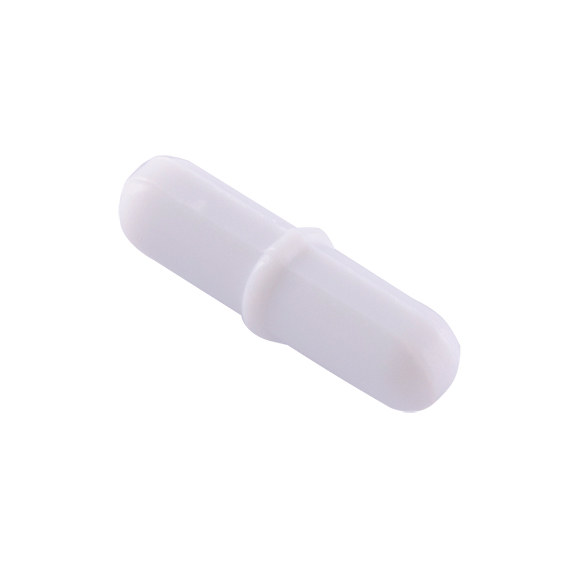

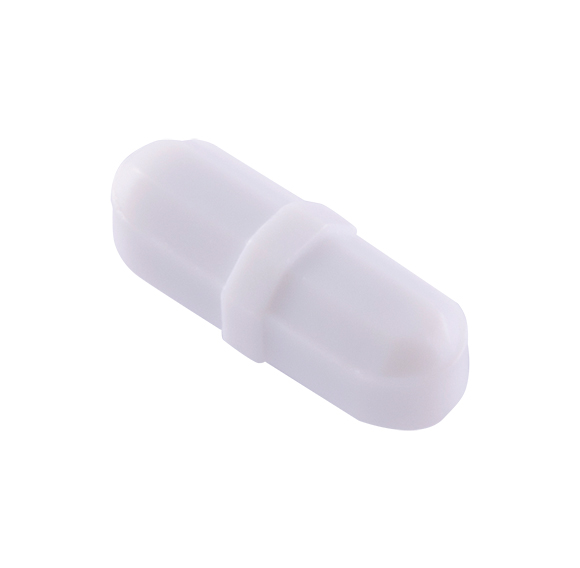

ALNICO V Magnetic Stir Bar with Pivot Ring – Enhanced Stability & Mixing
Efficient Stirring on Any Surface
The central pivot ring reduces surface contact and friction, enabling smooth rotation on both flat and curved vessel bottoms for consistent mixing results.
Powerful Magnetic Core
Built with high-performance ALNICO V magnets that ensure superior torque and magnetic coupling, even at higher speeds.
PTFE Encapsulation for Durability
The PTFE coating provides an inert, smooth surface that resists chemical attack and mechanical wear, ensuring long service life.
Autoclavable Design
Fully autoclavable and reusable, making it suitable for sterile and demanding laboratory environments.
| Code | OD (Ø) × L (mm) | No./Case |
|---|---|---|
| P80138 | 4.5 × 12 | 10 |
| P80103 | 4.5 × 15 | 10 |
| P80124 | 6 × 12 | 10 |
| P80104 | 6 × 20 | 10 |
| P80123 | 6 × 25 | 10 |
| P80105 | 6 × 30 | 10 |
| P80139 | 6 × 35 | 10 |
| P80125 | 8 × 13 | 10 |
| P80106 | 8 × 40 | 10 |
| P80107 | 8 × 50 | 10 |
| P80126 | 10 × 25 | 10 |
| P80108 | 10 × 60 | 5 |
| P80109 | 10 × 70 | 5 |
| P80127 | 13 × 75 | 2 |
| P80140 | 24 × 57 | 2 |
| P80141 | 24 × 108 | 2 |
| P80142 | 24 × 159 | 2 |
Description
ABDOS Magnetic Stirrer Bars with Pivot Ring are used for liquid stirring applications on magnetic stirrers and hot plate stirrers. The central pivot ring ensures efficient rotation, even in curved-bottom vessels, while the PTFE encapsulation provides exceptional resistance to chemicals and temperatures up to 260°C. These bars are designed for durability, reliability, and consistent performance in routine laboratory use.
Specification
| Feature | Details |
|---|---|
| Material | PTFE (Polytetrafluoroethylene) Encapsulated ALNICO V Magnet |
| Design | Central Pivot Ring |
| Temperature Resistance | Up to 260°C |
| Chemical Resistance | Excellent |
| Autoclavable | Yes |
| Applications | For Magnetic Stirrers & Hot Plate Stirrers |
| Surface Type | Smooth, Non-stick |
| Color | White |
| Reusable | Yes |
