Deep Well Plates - Consistent Performance for Automated Workflows
Built for High-Throughput Automation
Designed with an SBS-standard footprint, Abdos Deep Well Plates integrate seamlessly with leading automated liquid-handling and extraction platforms.
Exceptional Mechanical Strength
Engineered to withstand centrifugal forces up to 3000 g, ensuring reliable performance during intensive sample processing steps.
Precision-Molded for Reproducibility
Uniform well geometry and smooth internal surfaces minimize sample retention and support consistent, repeatable results across runs.
Contamination-Free Assurance
Manufactured in Class 8 cleanroom facilities using USP Class VI virgin polypropylene, ensuring low extractables, low leachables, and high assay integrity.
Flexible Format Options
Available in multiple capacities, well shapes, and bottom types, with compatible tip combs and accessories for complete workflow support.
| Code | Capacity | Type | Pack Size |
|---|---|---|---|

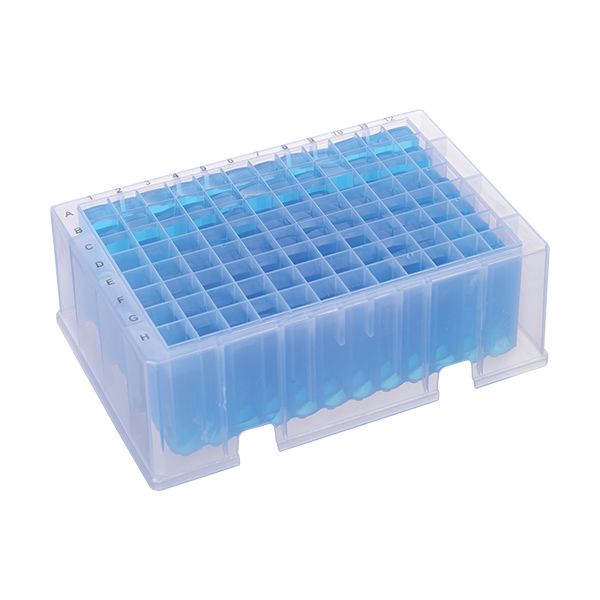

| P10802 | 2.2 ml | 96 Square Well, Round Conical Bottom (“V”) | 50 plates |

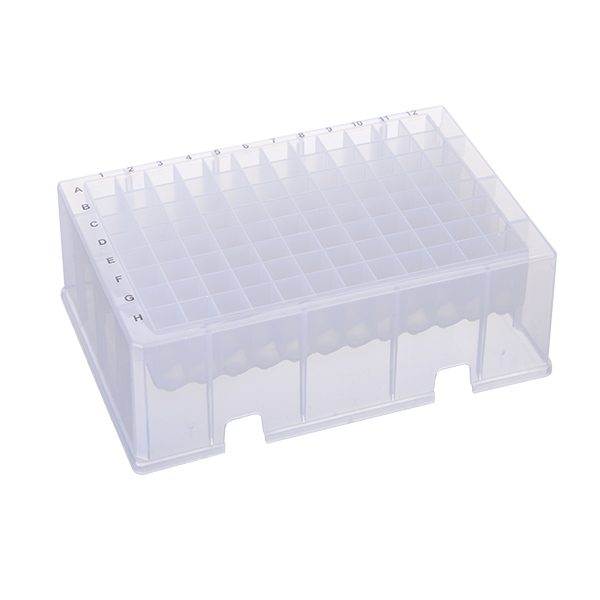

| P10803 | 1.2 ml | 96 Square Well, Conical (“V”) Bottom | 100 plates |

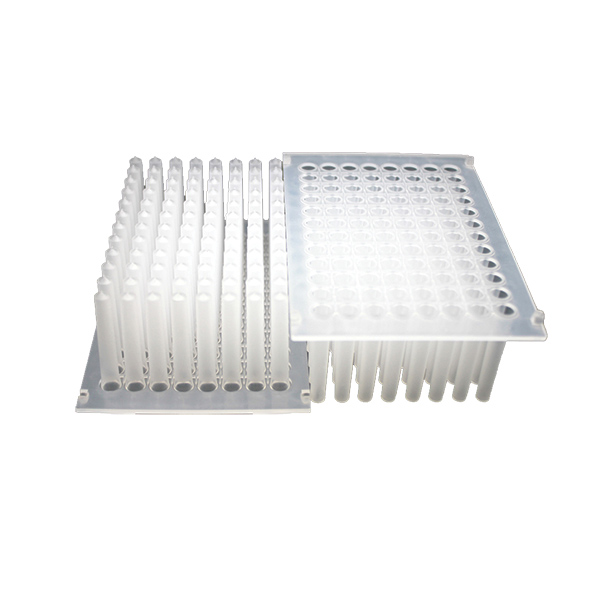

| P10808 | – | 96 Magnetic Tip Comb (for P10802) | 100 plates |
| P10809 | 0.5 ml | 96 Square Well Conical (“V”) Bottom (Elution Plate) | 50 plates |
| P10810 | 2.0 ml | 96 Round Well, Round (“U”) Bottom | 50 plates |
| P10811 | 1.0 ml | 96 Round Well, Round (“U”) Bottom | 50 plates |
Description
Abdos Deep Well Plates are designed for handling larger sample volumes in high-throughput laboratory workflows. They are used when multiple samples need to be processed, mixed, stored, or extracted at the same time. These plates are commonly used for nucleic acid extraction, sample preparation, protein work, storage, and automated liquid handling applications. Each plate is molded to provide uniform well shape and volume for consistent results across all wells. The deeper well design (typically 1.2 mL to 2.2 mL depending on the model) allows efficient processing of higher sample volumes compared to standard microplates. Manufactured from USP Class VI medical-grade virgin polypropylene, the plates offer good chemical resistance and low binding properties, helping maintain sample integrity during chemical exposure and long storage periods. They are suitable for use with common laboratory reagents, including buffers, alcohols, and organic solvents used in extraction workflows. Abdos Deep Well Plates conform to SBS standard dimensions, making them compatible with most multi-channel pipettes, automated liquid handling systems, and nucleic acid extraction platforms.
Specification
| Material | USP Class VI Medical Grade Virgin Polypropylene (PP) |
|---|---|
| Standard | SBS International Format |
| Temperature Range | –80°C to 121°C |
| Centrifugal Strength | Up to 3000 g |
| Identification | Alphanumeric Grid |
| Autoclavable | Yes |
| DNase, RNase, and Pyrogen Free: | Yes |
| Chemical Resistance | Excellent |
