AEROVAC-Oil-Free Vacuum Pumps

WAVEMAX – INCU-SHAKER
Code	Product	Platform Dimension	No. / Case
E11800	Aerovac-300	Vacuum: 100mbar; Max. Flow Rate: 17 L/min(220V)	1
E11801	Aerovac-400	Vacuum: 100 mbar; Max. Flow Rate: 34 L/min(220V)	1
E11802	Aerovac-600	Vacuum: 100 mbar; Max. Flow Rate: 60 L/min(220V)	1
E11803	Aerovac-410	Vacuum: 30 mbar; Max. Flow Rate: 19 L/min(220V)	1
E11804	Aerovac-610	Vacuum:30 mbar; Max. Flow Rate: 40 L/min(220V)	1
E11805	Aerovac-430	Vacuum:150/ 5.5 bar(max.pressure); Max. Flow Rate: 28L/min(220V)	1
E11806	Aerovac-800	Vacuum: 100 mbar; Max. Flow Rate: 80 L/min(220V)	1
E11807	Aerovac-810	Vacuum: 30 mbar; Max. Flow Rate: 50 L/min(220V)	1

Spare Accessories for E11260,E11290 & E11920
Code	Product	Product Dimension	No. / Case
E11810	Connectors	Outlet diameter: 9.5mm	1
E11815	L-shape connector	Outlet diameter: 8mm	1
E11816	Quick connection outlet	Outlet diameter: 12mm	1
E11821	Silencer	Suitable for Aerovac300 / Aerovac400 / Aerovac410	1
E11822	Silencer	Suitable for Aerovac600 / Aerovac610	1
E11823	Vacuum regulator / filter	Incl. pressure gauge	1
E11824	Vacuum regulator / filter	without pressure gauge	4
E11825	Foot pedal	Suitable for Aerovac series vacuum pumps	4
E11826	FEP tubing	Outer diameter: 6mm, Inner diameter: 4mm, Thickness: 1 mm, Length : 1m	1
E11830	Silicon tubing	Outer diameter: 12mm, Inner diameter: 6mm, Thickness: 3mm, Length : 1m	4

Descriptions

• ABDOS Aerovac Oil Free Vacuum Pump is a compact, lightweight and mobile oil-free piston Vacuum pump.

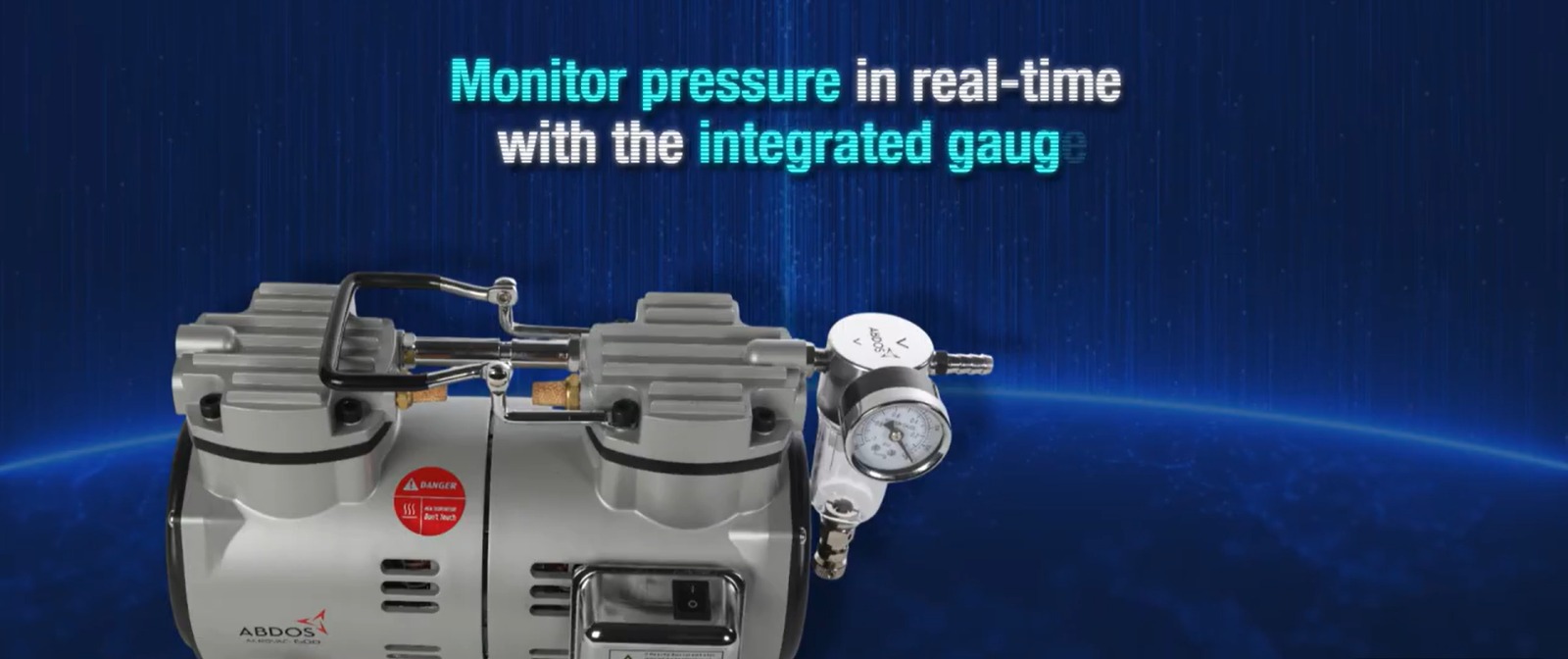

• It features manual pressure control and a gauge for pressure monitoring.
• The unit is maintenance-free and its oil-free design reduces its environmental impact.
• The pump can achieve flow rates of up to 52 L/min and an ultimate vacuum down to 13 mbar.
• A wide range of optional accessories are available.
• Application Areas: Abdos Vaccum Pump is useful for Biology laboratories, Food industry, Microbiological detection,
Vacuum extraction, Liquid filtration, Vacuum drying, Suspended solids measurement.

Product spec

CE certified

Yes

SPECIFICATIONS :	E11800	E11801	E11802	E11803	E11804	E11805	E11806	E11807
Volt	220 V	220 V	220 V	220 V	220 V	220 V	220 V	220 V
Frequency	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Maximum Power	60 W	80 W	190 W	80 W	210 W	125 W	220 W	220 W
Maximum Current	0.3 A	0.4 A	1.0 A	0.4 A	1.0 A	0.6 A	1.0 A	1.0 A
Maximum Vacuum	100 mbar	100 mbar	100 mbar	30 mbar	30 mbar	150/5.5 bar	100 mbar	30 mbar
Maximum Flow Rate	17 L/min	34 L/min	60 L/min	19 L/min	40 L/min	28 L/min	80 L/min	50 L/min
Motor Rotation	1450 rpm	1450 rpm	1450 rpm	1450 rpm	1450 rpm	1450 rpm	1450 rpm	1450 rpm
Dimension (W x D x H)mm	272 x 142 x 165	310 x 152 x 165	340 x 155 x 195	310 x 152 x 165	340 x 155 x 195	247 x 235 x 200	340 x 185 x195	340 x 185 x 195
Weight	4.4 Kg	5.4 Kg	8.6 Kg	5.4 Kg	8.6 Kg	5.5 Kg	8.6 Kg	8.6 Kg
Noise Level	50 dB	60 dB	52 dB	50 dB	52 dB	50 dB	52 dB	52 dB
