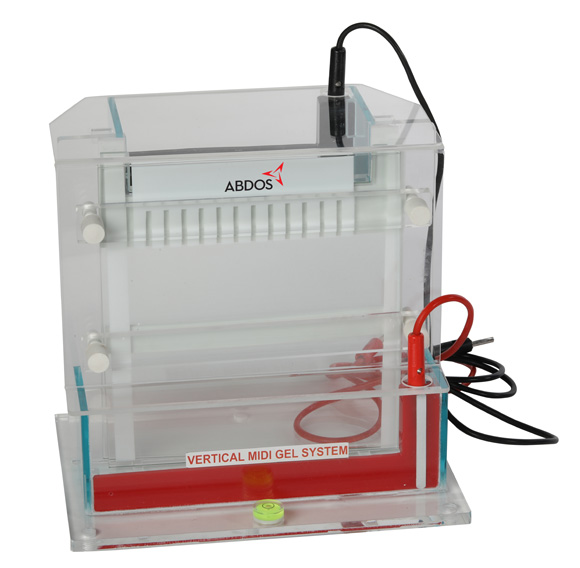

ABDOS Vertical Midi – Gel System

• The system is a single plate 16 x 14 cm midi-gel unit a simple, non-cooled cost-effective solution for low throughput
PAGE.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Ventilation holes in the system prevent the build-up of condensation during electrophoresis.
• Combs and spacers available in 0.5, 1.0 and 1.5 mm thickness.
• The system has a small footprint area and occupies minimal bench space.

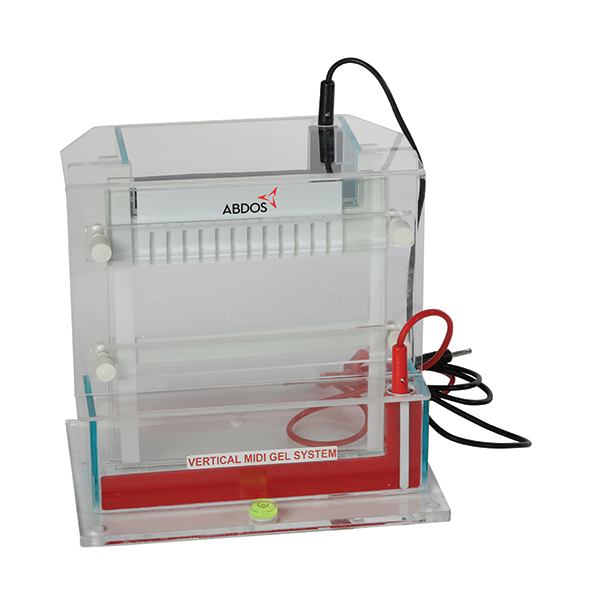

ABDOS Vertical Midi Slab Gel Electrophoresis System
Code Product No. / Case
E12276 Vertical Midi Slab Gel Electrophoresis System- basic unit includes Vertical Assembly, Glass plates (Rectangular
and Notched): 2 sets, Comb 0.5 mm Thickness (13 wells) – 1 No, Comb 1 mm Thickness (13 wells) – 1 No, Comb 1.5
mm Thickness (13 wells) – 1 No., Spacer 0.5 mm Thickness – 2 No’s, Spacer 1.0 mm Thickness – 2 No’s, Spacer 1.5
mm Thickness – 2 No’s, Gel Casting Stand – 1No, Supporting Screws-2 No’s, Safety Lid-1 No, Connecting cord-1 Pair.
1
Spare Accessories:
Code Product No. / Case
E12277 Glass Plates(Notched & Rectangular) 1 set
E12278 Regular Multiple Gel Casting Unit(For 2 Gels) 1
E12279 Gel Developing Tray with Gel Holder for 16 x 14 cm 1
E12280 Gradient Maker, total Capacity 25 + 25 ml 1
E12281 Teflon Comb 13 well 0.5 mm 1
E12282 Teflon Comb 13 well 1.0 mm 1
E12283 Teflon Comb 13 well 1.5 mm 1
E12284 Teflon Comb 20 well 0.5,1.0, 1.5 mm 1
E12285 Teflon Spacers 0.5 mm 1 pack (6 pcs per pack)
E12286 Teflon Spacers 1.0 mm 1 pack (6 pcs per pack)
E12287 Teflon Spacers 1.5 mm 1 pack (6 pcs per pack)
E12288 Teflon Spacers 3.0 mm 1 pack (6 pcs per pack)
E12289 ACRYLIC Combprep. 3 well 3.0 mm 1
E12290 ACRYLIC Combprep. 3 well 6.0 mm 1
E12291 ACRYLIC Clamp (1 pcs) and Screws (2 pcs) 1 pack
E12292 Lavelling Screws 3
E12293 Glass Plate Stand 1
E12294 Connecting Cords 2

Descriptions

• The system is a single plate 16 x 14 cm midi-gel unit a simple, non-cooled cost-effective solution for low throughput
PAGE.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Ventilation holes in the system prevent the build-up of condensation during electrophoresis.
• Combs and spacers available in 0.5, 1.0 and 1.5 mm thickness.
• The system has a small footprint area and occupies minimal bench space.

Product spec

CE certified Yes

SPECIFICATIONS :

Material ACRYLIC
Unit Dimensions (L x B x H) 25 x 20 x 27 cm
Upper Buffer Tank Dimension (L x B x H) 140 x 60 x 25 cm
Lower Buffer Tank Dimension (L x B x H) 200 x 60 x 60 cm
Active Gel Dimension (WX H) 16 x 14cm
Maximum Sample Capacity 13
Recommended Buffer Volume Upper Tank : 150 ml, Lower Tank : 200ml
No. of Combs 13 well Teflon comb, 0.5, 1.0 & 1.5 mm (1 Nos each)
No. of Spacer 0.5, 1 mm & 1.5 mm (4 Nos each)
Glass plates Notched and Rectangular (2 Sets)
Gasket Fixed
Clamp & Screws 4 Sets
No. of Platinum Electrode Red and Black (1 Pair)
Connecting Cord Red and Black (1 Each)
Recommended power supply E12377 & E12378
