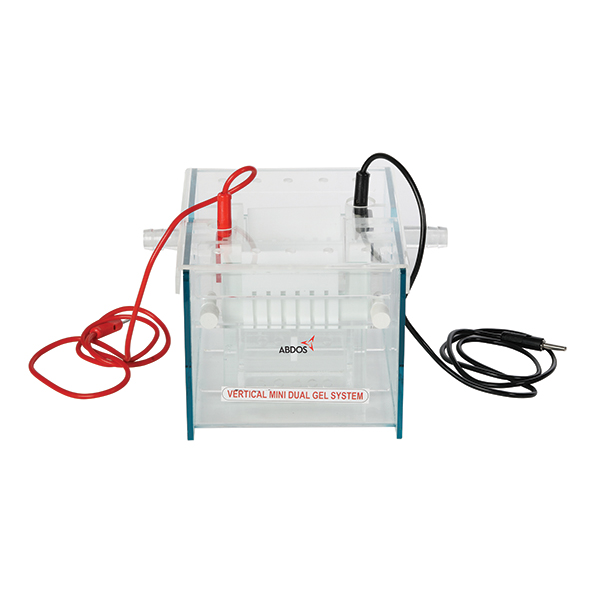

ABDOS Vertical Dual Mini Gel System

• The system is a twin plate 8 x 7 cm mini-gel unit designed specifically for PAGE techniques requiring self-cast gels, although precast gels may also be used.
• The system contains standard casting units.
• The system is compatible with standard, 8 x 7cm (W x H) commercially available precast gels.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Combs and spacers available in 0.5 & 1 mm thickness.

ABDOS Vertical Mini Dual Slab Gel Electrophoresis System
CodeProductNo. / Case
E12226Vertical Mini Dual Slab Gel Electrophoresis System – Basic unit includes Dual Vertical Assembly, Glass Plates (Rectangular & Notched) : 2 sets, Comb 0.5 mm Thickness(7 wells) – 2 No’s, Comb 1 mm Thickness (7 wells) – 2 No’s., Spacer 0.5 mm Thickness – 4 No’s, Spacer 1.0 mm Thickness – 4 No’s, Gel Casting Stand – 1No, Supporting
Screws-2 No’s, Safety Lid – 1 No, Connecting Cord – 1 Pair
1
Spare Accessories:
CodeProductNo. / Case
E12227Glass Plates(Notched & Rectangular)1 set
E12228Mini Multiple Gel Casting Unit(For 2 Gels)1
E12229Teflon Comb 7 well 0.5 mm1
E12230Teflon Comb 7 well 0.75 mm1
E12231Teflon Comb 7 well 1.0 mm1
E12232Teflon Comb 7 well 1.5 mm1
E12233Teflon Comb 10 well 0.5 mm1
E12234Teflon Comb 10 well 0.75 mm1
E12235Teflon Comb 10 well 1.0 mm1
E12236Teflon Comb 10 well 1.5 mm1
E12237Teflon Spacers 0.5 mm6
E12238Teflon Spacers 0.75 mm6
E12239Teflon Spacers 1.0 mm6
E12240Teflon Spacers 1.5 mm6
E12241ACRYLIC Clamp(1 pcs) and Screws(2 pcs)1 set
E12242Gel Developing Tray with Gel Holder 8 x 7
cm(05-02)
1
E12243Glass Plate Stand1
E12244Connecting Cords2

Descriptions

• The system is a twin plate 8 x 7 cm mini-gel unit designed specifically for PAGE techniques requiring self-cast gels, although precast gels may also be used.
• The system contains standard casting units.
• The system is compatible with standard, 8 x 7cm (W x H) commercially available precast gels.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Combs and spacers available in 0.5 & 1 mm thickness.

Product spec

CE certifiedYes

SPECIFICATIONS :

MaterialACRYLIC
Unit Dimensions (L x B x H)16 x 20 x 15 cm
Upper Buffer Tank Dimension (L x B x H)70 x 70 x 43 cm
Lower Buffer Tank Dimension (L x B x H)150 x 130 x 115 cm
Active Gel Dimension (W X H)8 x 7 cm
Maximum Sample Capacity14
Recommended Buffer VolumeUpper Tank : 150 ml
Lower Tank : 200 ml
Water Circulation FacilityYes
No. of Combs7 well Teflon comb
0.5 & 1.0 mm (2 Nos each)
No. of Teflon Spacer0.5 & 1 mm (4 Nos each)
Glass platesNotched & Rectangular
(2 Sets)
Platinum ElectrodeRed and Black (1 Pair)
Connecting CordRed and Black (1 Each)
Recommended power supplyE12377 & E12378
