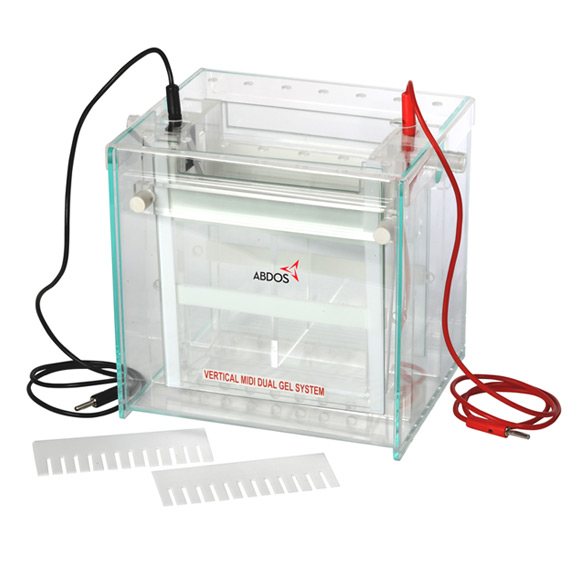

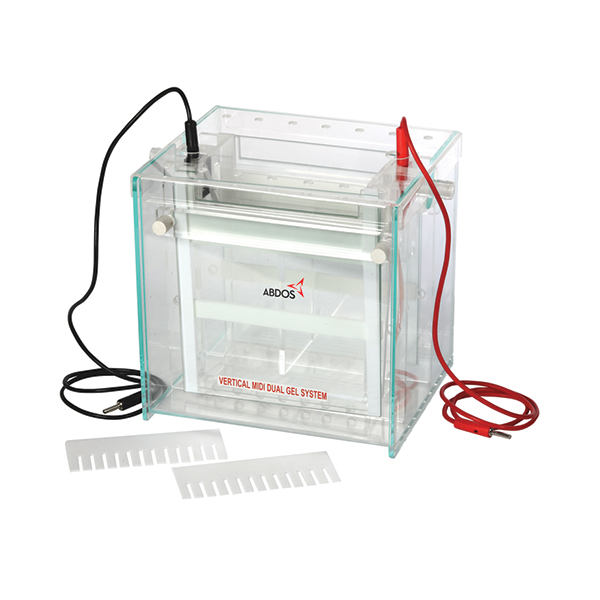

ABDOS Vertical Dual Midi Gel System

• The system is a twin plate 16 x 14 cm midi-gel unit designed specifically for PAGE techniques requiring self-cast gels, although
precast gels may also be used.
• The system contains standard casting units.
• The system is compatible with standard, 16 x 14cm (W x H) commercially available precast gels.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.

Categories:
ABDOS Vertical Midi Dual Slab Gel Electrophoresis System
CodeProductNo. / Case
E12326Vertical Midi Dual Gel System Includes – Dual Midi Vertical Assembly, 2 sets of Glass Plates (Rectangular & Notched), 13 wells 2 Combs each of 1 mm & 1.5mm thickness,4 nos. spacers of 1 mm & 1.5 mm Thickness, Gel Casting Stand – 1 No, Supporting Screws-2 No’s, Safety Lid – 1 No, Connecting Cord – 1 Pair1

E12342Leveling Screws1

Spare Accessories:
CodeProductNo. / Case
E12327Glass Plates(Notched & Rectangular)1 set
E12331Teflon Comb 13 well 0.5 mm1
E12332Teflon Comb 13 well 1.0 mm1
E12333Teflon Comb 13 well 1.5 mm1
E12334Teflon Comb 20 well 0.5 mm1
E12395Teflon Comb 20 well, 1 mm1
E12396Teflon Comb 20 well, 1.5 mm1
E12335Teflon Spacers 0.5 mm1
E12336Teflon Spacers 1.0 mm1
E12337Teflon Spacers 1.5 mm1
E12343Glass Plate Stand1
E12244Connecting Cords1 Set

Descriptions

• The system is a twin plate 16 x 14 cm midi-gel unit designed specifically for PAGE techniques requiring self-cast gels, although
precast gels may also be used.
• The system contains standard casting units.
• The system is compatible with standard, 16 x 14cm (W x H) commercially available precast gels.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Combs and spacers available in 0.5 & 1 mm thickness.
• The system has a small footprint area and occupies minimal bench space.

Product spec

CE certifiedYes

SPECIFICATIONS :

MaterialACRYLIC
Unit Dimensions (L x B x H)23 x 18 x 27.5 cm
Upper Buffer Tank Dimension (L x B x H)14 x 7 x 2 cm



Lower Buffer Tank Dimension (L x B x H)20 x 16 x 19 cm
Active Gel Dimension (W x H)16 x 14cm
Maximum Sample Capacity26
Recommended Buffer VolumeUpper Tank : 250 ml
Lower Tank : 500 ml
Water Circulation FacilityYes
No. of Combs13 well Teflon comb 0.5 & 1.0
mm (2 Nos each)
No. of Teflon Spacer0.5 & 1 mm (4 Nos each)
Glass platesNotched and Rectangular
(2 Sets)
Clamp & Screws4 Sets
No. of Platinum ElectrodeRed and Black (1 Pair)
GasketFixed
Connecting CordRed and Black (1 Each)
Recommended power supplyE12377 & E12378
