ABDOS HTP AGE Horizontal Electrophoresis

ABDOS High Throughput Horizontal Electrophoresis offers a longer run length of up to 32cm & 26cm width offering a high number of sample loading.
Large tray size of 26x32cm (WxL) offers wide range of applications such as rapid screening of clonal or PCR products and RFLP Analysis.
Multichannel pipette-compatible combs support running a 96-well PCR plate to the tray.

ABDOS HTP Horizontal Electrophoresis
Code	Product	No. / Case

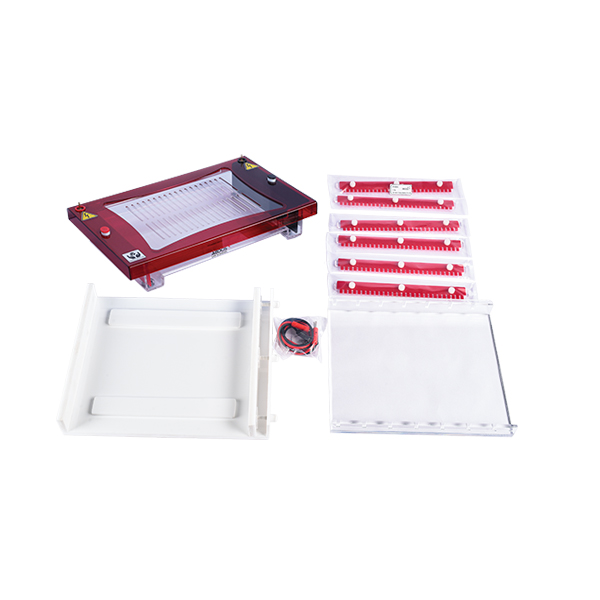

E12200	HTP Horizontal System includes a Basic unit with removable Platinum Electrode Assembly, Gel Running tray of 26 x 32cm (1 No.), 1mm thick 6 combs of 28 Wells, casting unit & connecting Cord (1 Pair)	1

Spare Accessories:
Code	Product	No. / Case
E12207	Gel Running Tray 26 X 32cm	1
E12213	28 Well Height Adjustable Comb 1 mm	1
E12208	28 Well Height Adjustable Comb 1.5 mm	1
E12209	52 Well Height Adjustable Comb 1 mm	1
E12210	52 Well Height Adjustable Comb 1.5 mm	1
E12211	Gel Casting Tray : 26 X 32 cm	1
E12212	Connecting Cord	1 Pair
E12214	Negative Electrode casing with wire & Electrode	1
E12215	Positive Electrode casing with wire & Electrode	1

Descriptions

ABDOS High Throughput Horizontal Electrophoresis offers a longer run length of up to 32cm & 26cm width offering a high number of sample loading.
Large tray size of 26x32cm (WxL) offers wide range of applications such as rapid screening of clonal or PCR products and RFLP Analysis.
Multichannel pipette-compatible combs support running a 96-well PCR plate to the tray.
Height-adjustable combs offer complete control over the depth of the wells and sample loading capacity.
The system includes a standard caster for leakproof gel casting that doesn’t require any taping.
Easy to replace removable electrode casing.

CE certified

Yes

Dimensions (WxLxH)	36 x 40 x 8.5 cm
Construction Material	ACRYLIC
Gel Size (WxL)	26 x 32cm
Buffer Required	1500 ml
Platinum Electrodes	1 set anode & cathode removable electrode casing.
Standard Combs	28 well height adjustable combs (6 Nos), 1mm thick
Maximum sample capacity	416 samples
Comb Slots	8 slots
Gel Casting Tray	Included as standard
Connecting Cord	1 Pair (Red & Black) included as standard
