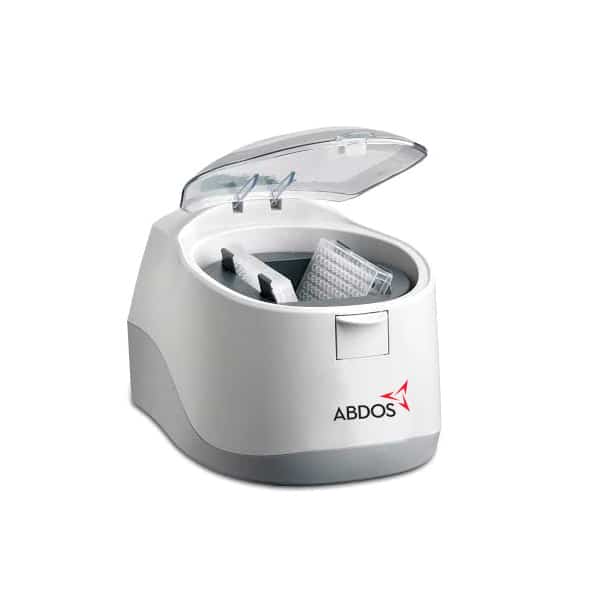

Swirl Micro Plate Centrifuge – Fast, Safe, and Space-Efficient.

The ABDOS Swirl Micro Plate Centrifuge delivers fast, uniform spin-downs for PCR, ELISA, and deep-well plates in a compact, high-throughput-ready design.

Ventajas principales

  • Compact footprint — fits easily on any benchtop.
  • Secure plate placement without sealing tapes or caps.
  • Smooth stop in under 4 seconds with electronic braking.
  • Interchangeable rotors support multiple plate formats.

Swirl Mini Micro Centrifuge – Fast, Compact, and Quiet.

Space-Saving Efficiency

Compact 9×10-inch design ideal for small or crowded lab setups.

Innovative Rotor Design

Plates load at a 75° angle and swing to a horizontal position during operation for complete sample collection.

Quick & Controlled Braking

Electric brake halts rotation safely within seconds, protecting samples from disturbance.

Wide Plate Compatibility

Accommodates PCR plates, microtiter plates, and deep-well plates up to 35 mm.

Reliable Performance

Operates at up to 2550 rpm (600 × g) — providing consistent results without splashing or cross-contamination.

Código Producto N.º/caso
E11550
Swirl Micro Plate Centrifuge
1
Spare Accessories:
E11551
Adapter, 96 x 0.2 ml or 8 and 12 x PCR strips
2
E11552
Rotor with carriers for deepwell plates upto 35mm tall (max speed 1500 rpm)
1

Descripción

Engineered for precision and ease, the ABDOS Swirl Micro Plate Centrifuge ensures droplets and condensation settle uniformly across all wells.Its angled loading mechanism simplifies plate handling, while the swing-out motion provides balanced sample concentration.Quiet, compact, and durable, it’s a dependable solution for PCR preparation, ELISA setup, and molecular biology workflows.

Especificaciones

Voltage 220–230 V
Frequency 50–60 Hz
Max Speed 2550 rpm
Max RCF 600 × g
Rotor Capacity 2 × 2 PCR plates, 2 × microtiter plates, 24 × 0.2 mL PCR strips
Deceleration Time 4 seconds
Motor Type Brushless DC Motor
Dimensiones (L × A × H) 230 × 260 × 197 mm
Weight 4.0 kg
Operating Temperature Range 4°C – 40°C
Permissible Relative Humidity ≤80%
Certification CE Certified
Noise Level Low (≤50 dB)

Hoja de datos

Swirl Micro Plate Centrifuge

Swirl Micro Plate Centrifuge

Folleto

Swirl Micro Plate Centrifuge

Swirl Micro Plate Centrifuge

Video
