Home/Products/Equipments/HOTBLOCK – LED Digital Dry Bath

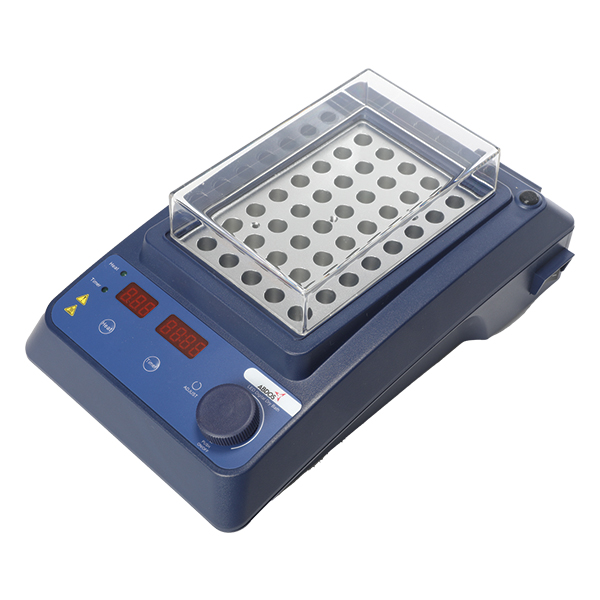

HOTBLOCK – LED Digital Dry Bath

  • ABDOS-LED Digital Dry Bath Heaters are available in single and dual block configurations and provide broad temperature range up to 150°C, which makes them useful for a variety of applications in molecular biology, histology, clinical, environmental, and industrial laboratories.
  • They have been designed to incorporate the best combination of features including block capacity, dual displays, and an external temperature probe that gives life science researchers the confidence and efficiency they need when working with precious lab samples.
  • This is ideal for including melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture and media tests, coagulation, tests, blood urea nitrogen determinations and in-situ hybridizations.
Categories:
HOTBLOCK – LED Digital Dry Bath
Code Product Block Capacity Temperature Range No. / Case
E11330 LED Digital Dry Bath with E11333 Single Ambient +5 °C -120 °C 1
E11360 LED Digital Dry Bath with E11363 Single Ambient +5 °C -105 °C 1
E11370 LED Digital Dry Bath with E11363 & E11364 Dual Ambient +5 °C -105 °C 1
E11380 LED Digital Dry Bath with E11363 Single Ambient +5 °C -150 °C 1
E11390 LED Digital Dry Bath with E11363 & E11364 Dual Ambient +5 °C -150 °C 1



Spare Accessories of E11330
Code Product Places No. / Case
E11331 Heating Block, used for 0.2 ml 54 1
E11332 Heating Block, used for 0.5 ml 40 1
E11333 Heating Block, used for 1.5 ml 40 1
E11338 Heating Block, used for 2.0 ml 40 1
E11334 Heating Block, used for 5/15 ml 28 1
E11335 Heating Block, used for 50 ml 8 1
E11336 Heating Block, used for 0.2, 0.5, 1.5/2.0 ml 18 1
E11337 Heating Block, used for 96/384 Microplate 96 /384 Microplate 1
E11339 Heating Block, used for 2.0 ml (Thin) 40 1
E11368 Heating Block, used for 1.5 ml (Thin) 40 1
Spare Accessories of E11360, E11370, E11380, E11390
Code Product Places No. / Case
E11361 Heating Block, used for 0.2 ml 30 1
E11362 Heating Block, used for 0.5 ml 20 1
E11363 Heating Block, used for 1.5 ml 20 1
E11364 Heating Block, used for 2 ml 20 1
E11365 Heating Block, used for 5 ml 12 1
E11366 Heating Block, used for 15 ml 12 1
E11367 Heating Block, used for 50 ml 4 1

Descriptions

  • ABDOS-LED Digital Dry Bath Heaters are available in single and dual block configurations and provide broad temperature range up to 150°C, which makes them useful for a variety of applications in molecular biology, histology, clinical, environmental, and industrial laboratories.
  • They have been designed to incorporate the best combination of features including block capacity, dual displays, and an external temperature probe that gives life science researchers the confidence and efficiency they need when working with precious lab samples.
  • This is ideal for including melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture and media tests, coagulation, tests, blood urea nitrogen determinations and in-situ hybridizations.
  • The blocks are precision machined to match the conical size and shape of 0.5, 1.5, 2.0, 15 and 50ml tube sizes, providing unsurpassed temperature transfer. Assorted blocks are available for compatibility with nearly all common laboratory tubes and plates.
  • Various optional blocks are available for best performance.
  • Protection class according to DIN EN 60529.

Product spec

CE certified Yes
SPECIFICATIONS :
E11330
E11360
E11370
E11380
E11390
Voltage



 220-240V 220-240V 220-240V 220-240V 220-240V
Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Adaptor block material Aluminium Aluminium Aluminium Aluminium Aluminium
Maximum heating rate 5.5°C/min 5.5°C/min 5.5°C/min 5.5°C/min 5.5°C/min
Heating temperature Range Room Tempearture
+5-120°C		 Room Tempearture
+5-105°C		 Room Tempearture
+5-105°C		 Room Tempearture
+5-150°C		 Room Tempearture
+5-150°C
Temperature Setting Range 15-120°C 25-105°C 25-105°C 25-150°C 25-150°C
Temperature Control accuracy ±0.5°C 25-90 : ±0.3

90-105 : ±0.6

 25-90 : ±0.3

90-105 : ±0.6

 25-90 : ±0.3

90-105 : ±0.6

 25-90 : ±0.3

90-105 : ±0.6
Temperature Uniformity @
37°C		 ±0.5 ±0.2 ±0.2 ±0.2 ±0.2
Sound Alarming Function – Yes Yes Yes Yes
Timer Yes Yes Yes Yes Yes
Time setting range 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min 0 Min – 99Hr 59Min
Operation type Continuous/timed
operation		 Continuous/timed
operation		 Continuous/timed
operation		 Continuous/timed
operation		 Continuous/timed
operation
External Sensor – Yes Yes Yes Yes
USB Interface – Yes Yes Yes Yes
Dimension (W x D x H) 175 x 290 x 85mm 290 x 210 x 120mm 290 x 210 x 120mm 290 x 210 x 120mm 290 x 210 x 120mm
Permissible ambient temperature 10-40°C 10-40°C 10-40°C 10-40°C 10-40°C
Permissible humidity < 80% < 80% < 80% < 80% 80%
Protection Class IP21 IP21 IP21 IP21 IP21

Data Sheets


hotblock-led-digital-dry-bath
